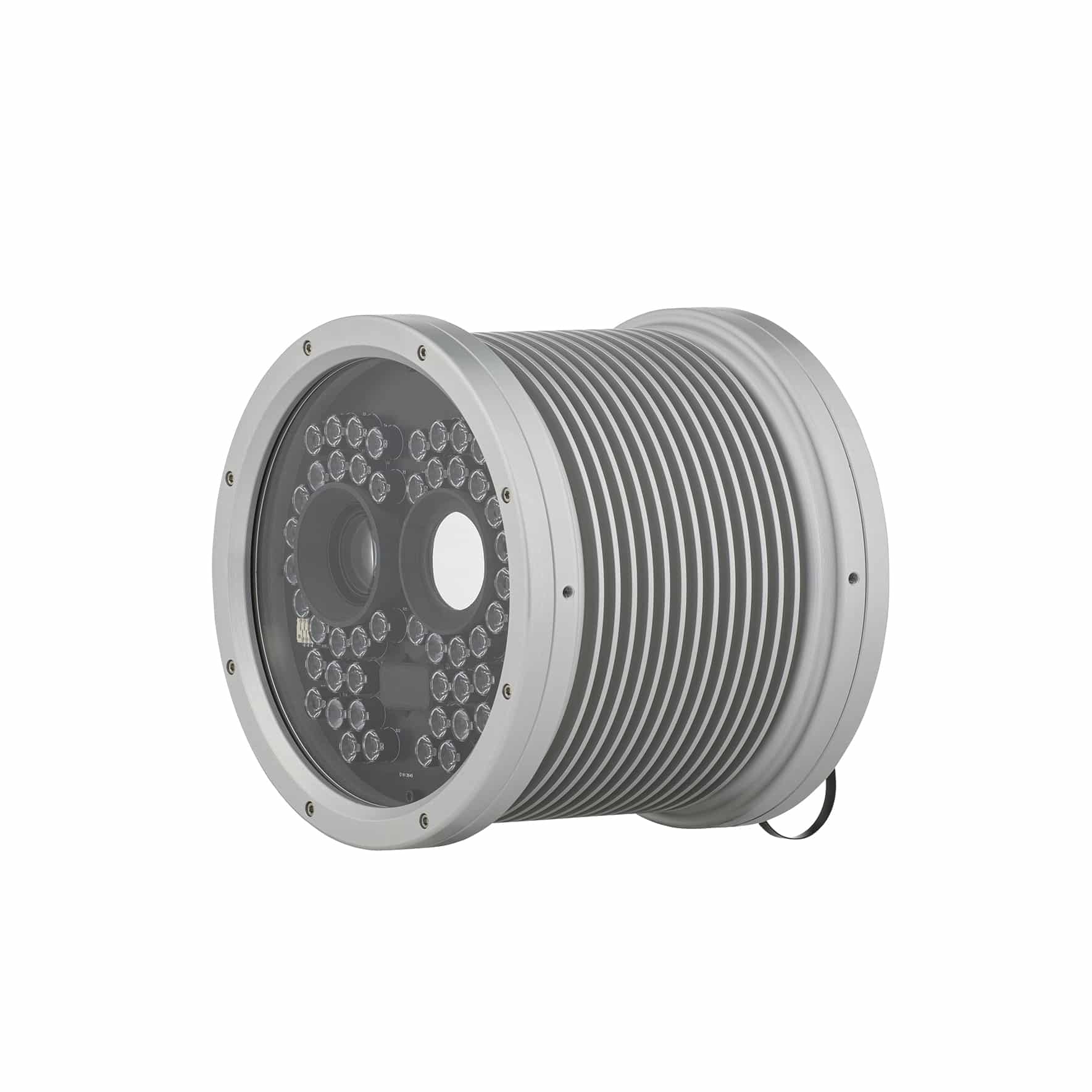

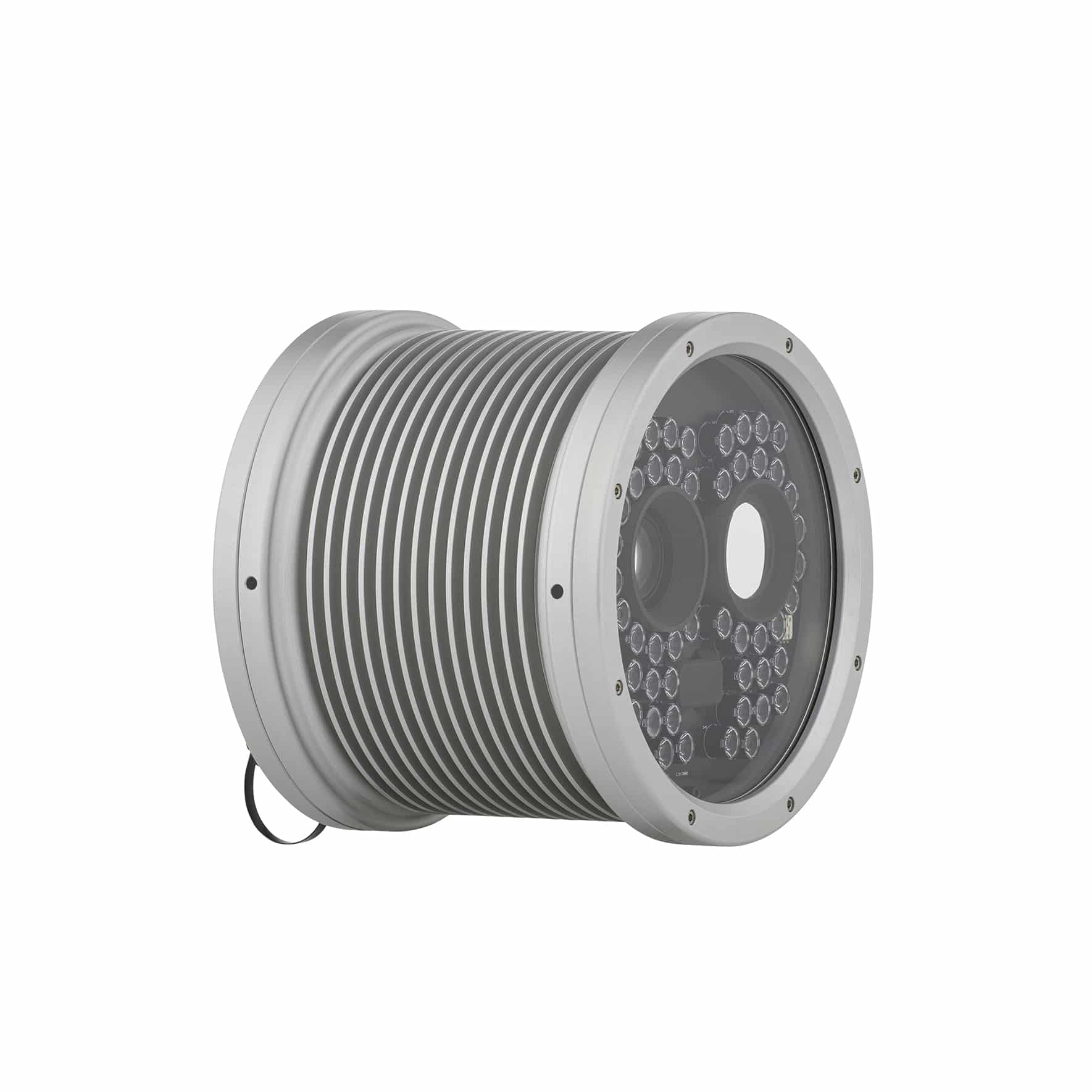

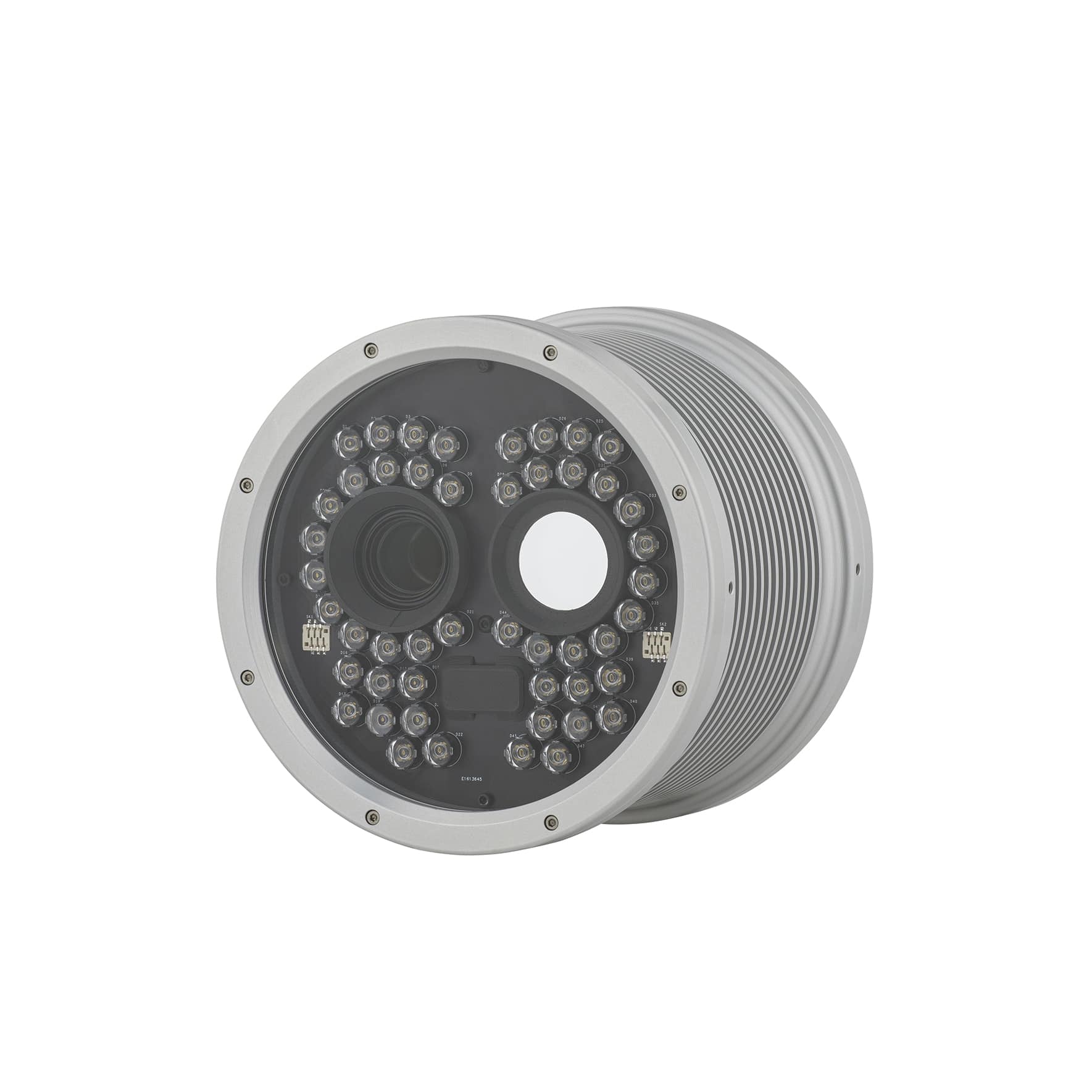

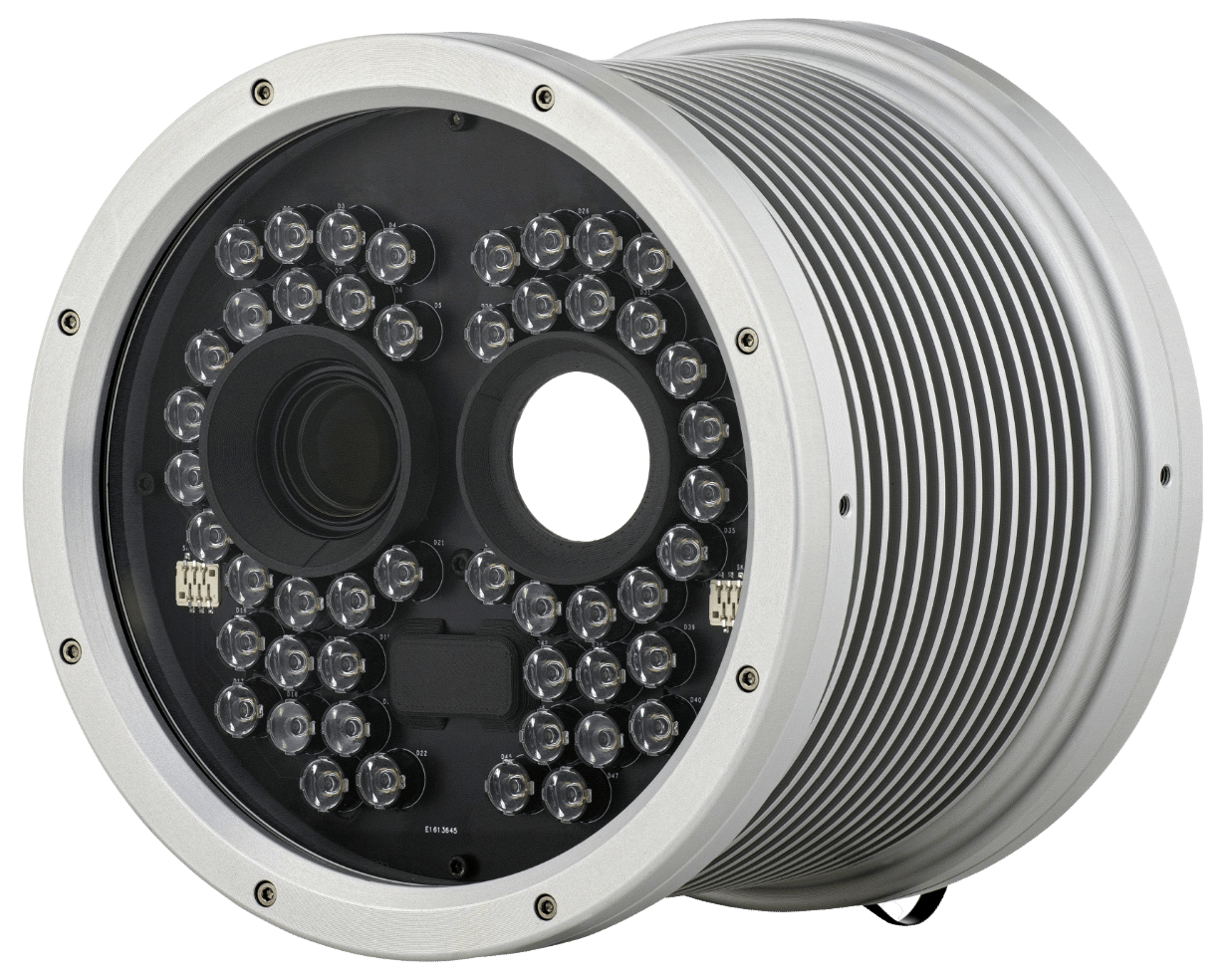

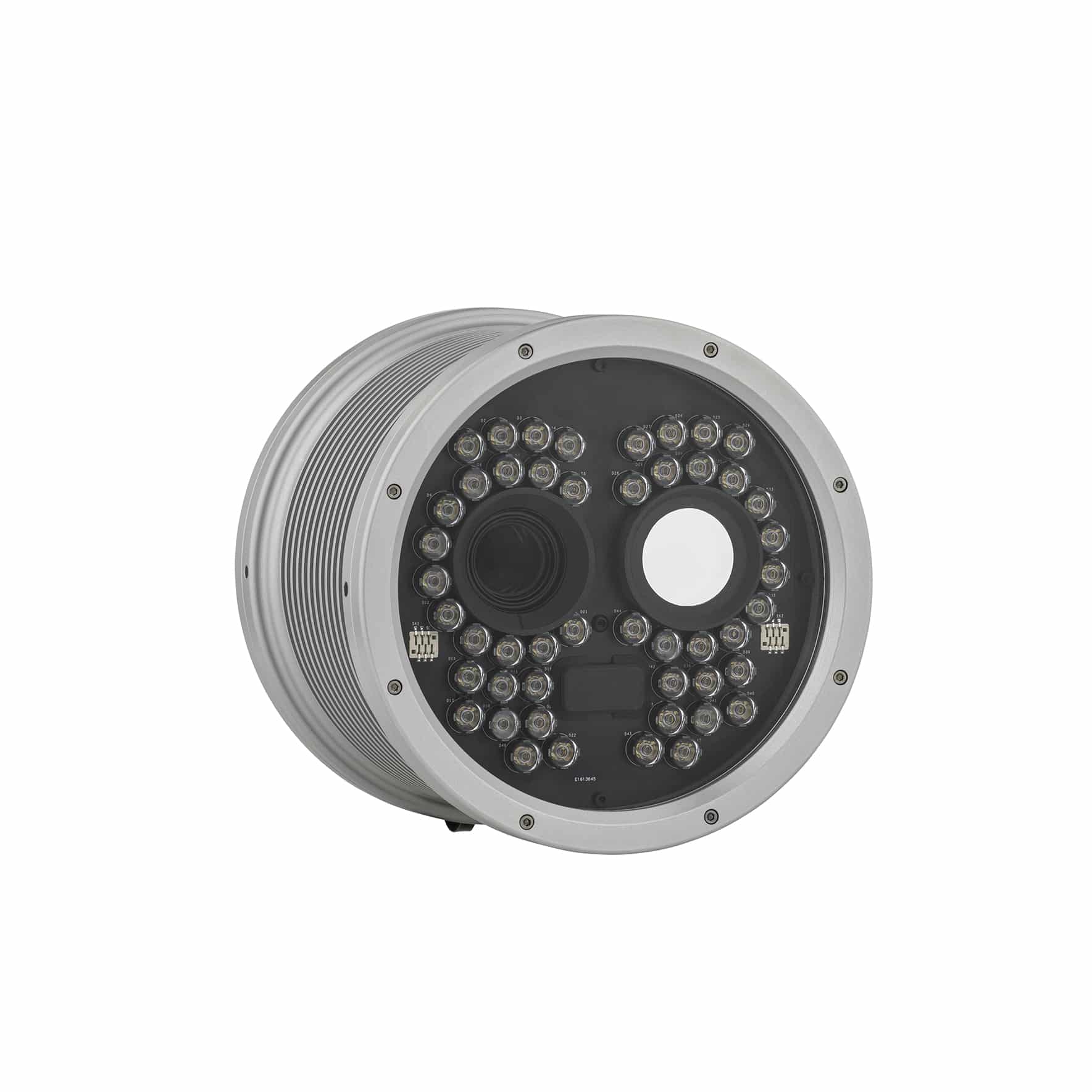

Proven building blocks remain in the AiQ including two 1080p full HD camera modules per unit for colour and IR images. This combination is proven to offer best 24/7 capture. Using fully motorised zoom block lenses ensures flexible installation and maxIRange™ pulsed IR lighting provides up to 40m range for high speed multi-lane capture.

Setting up the AiQ is simple through browser configuration and API interfaces. The native ANPR engine takes full advantage of raw camera sensor data for uncompressed resolution at pixel level. Quad core embedded processor with GPU support ensures real time recognition at high speeds with enough spare power for additional tasks.

AiQ SPECIFICATION

High Speed, High Definition Intelligent ANPR Camera

Specifications

Recognition Range

Capture up to 7.5m width of traffic lanes from 5m to 40m range based on 850nm IR on EU retro-reflective plates

Sensors

ANPR and Overview: 1/1.8” 1920(H) x 1080(V) 16:9 global shutter, 30 fps

Motorised Lens

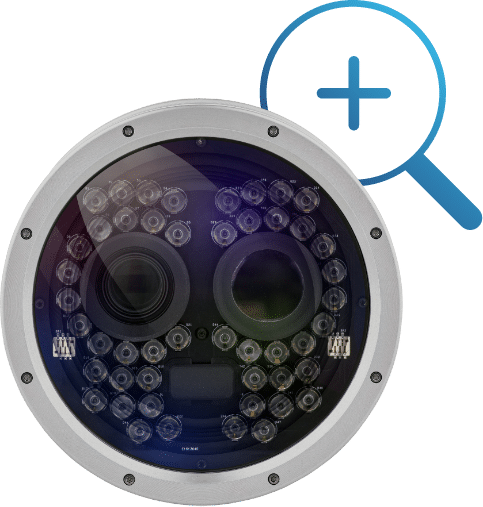

Auto/Manual Optical 12x / Digital 12x lens (DC Iris), IR Corrected Iris F-value: F1.5(W)~1.9(T) Focal Length: f=7.0mm~84mm - Angle of View Horizontal: 51.1°(W)~5.0°(T), Vertical 30.0°(W)~3.2°(T)

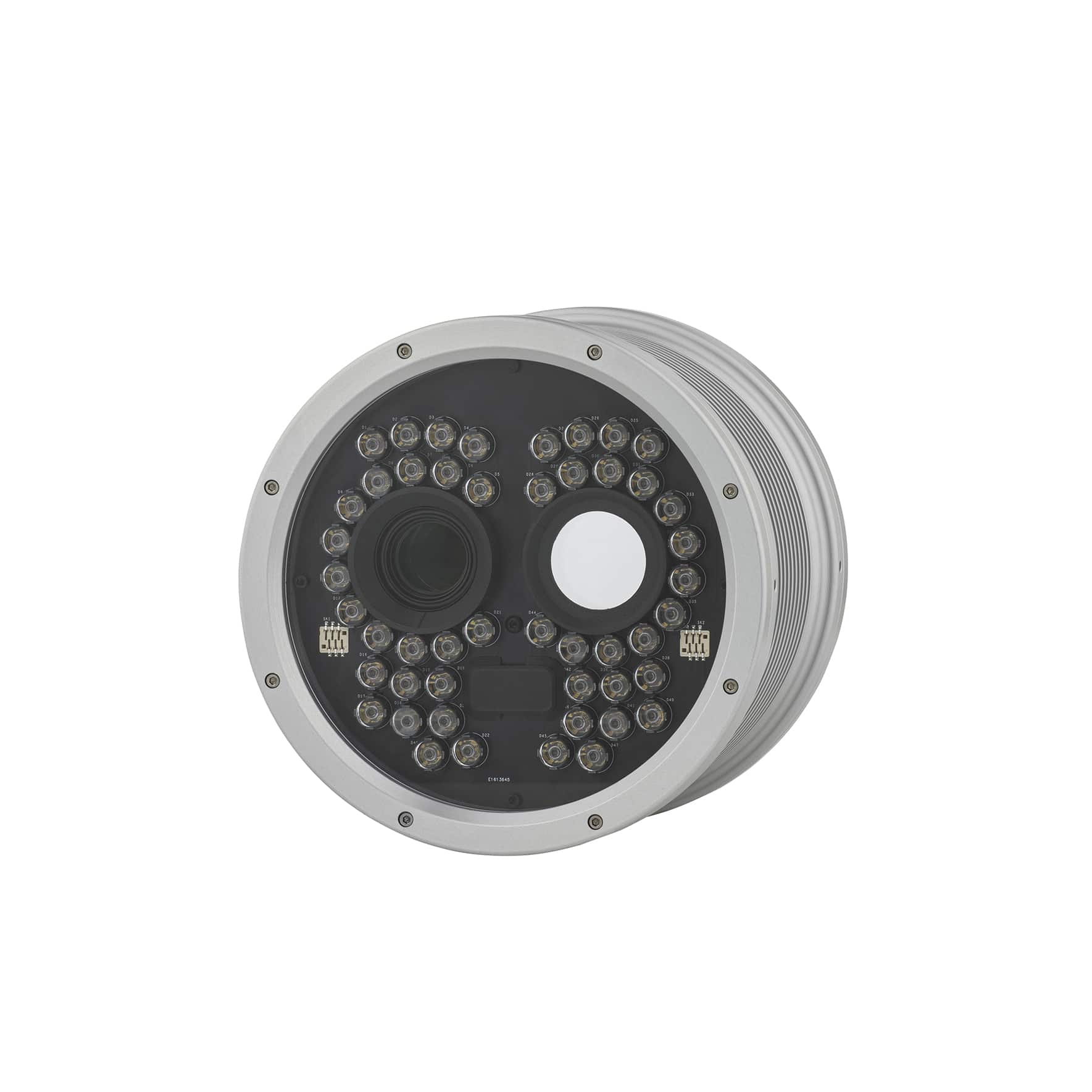

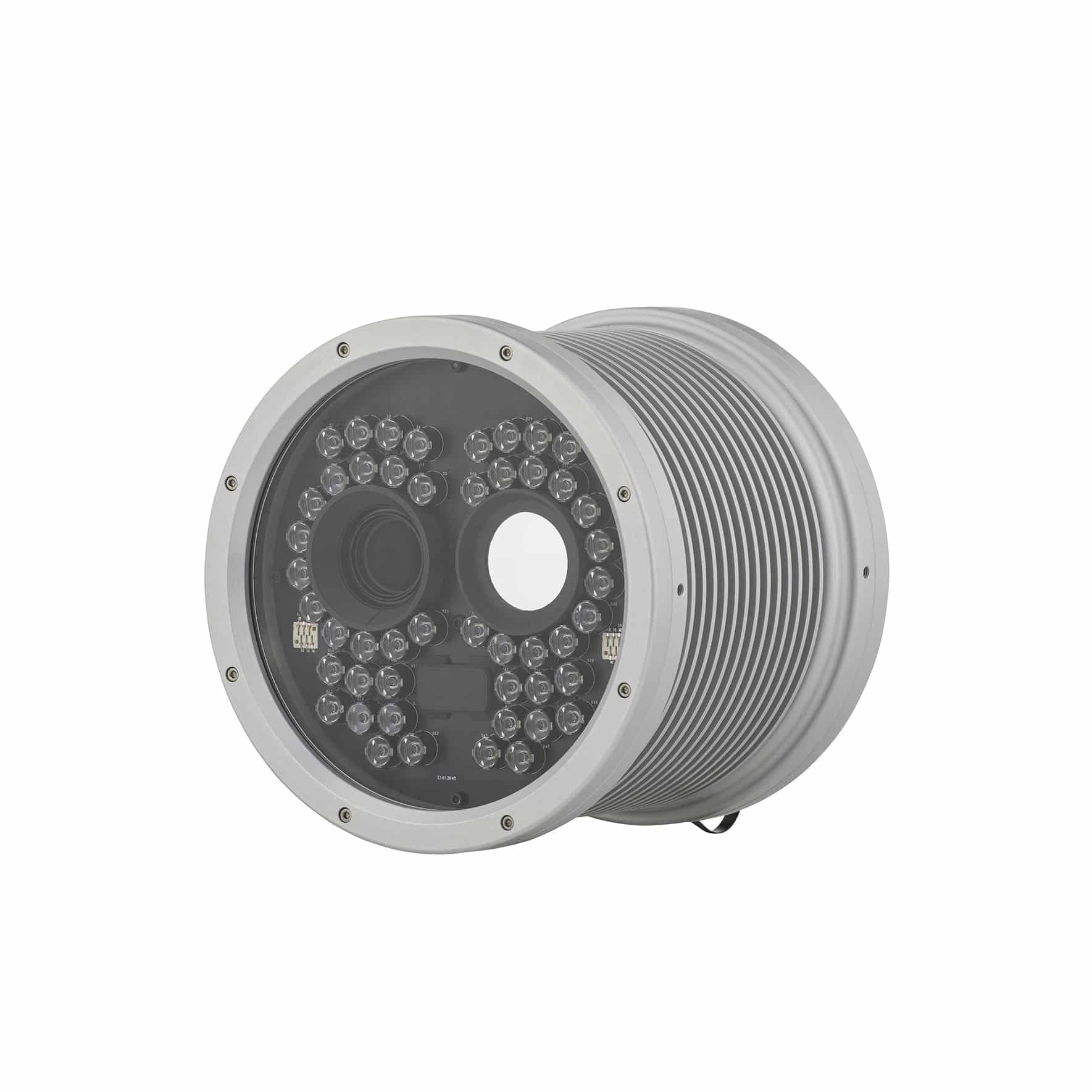

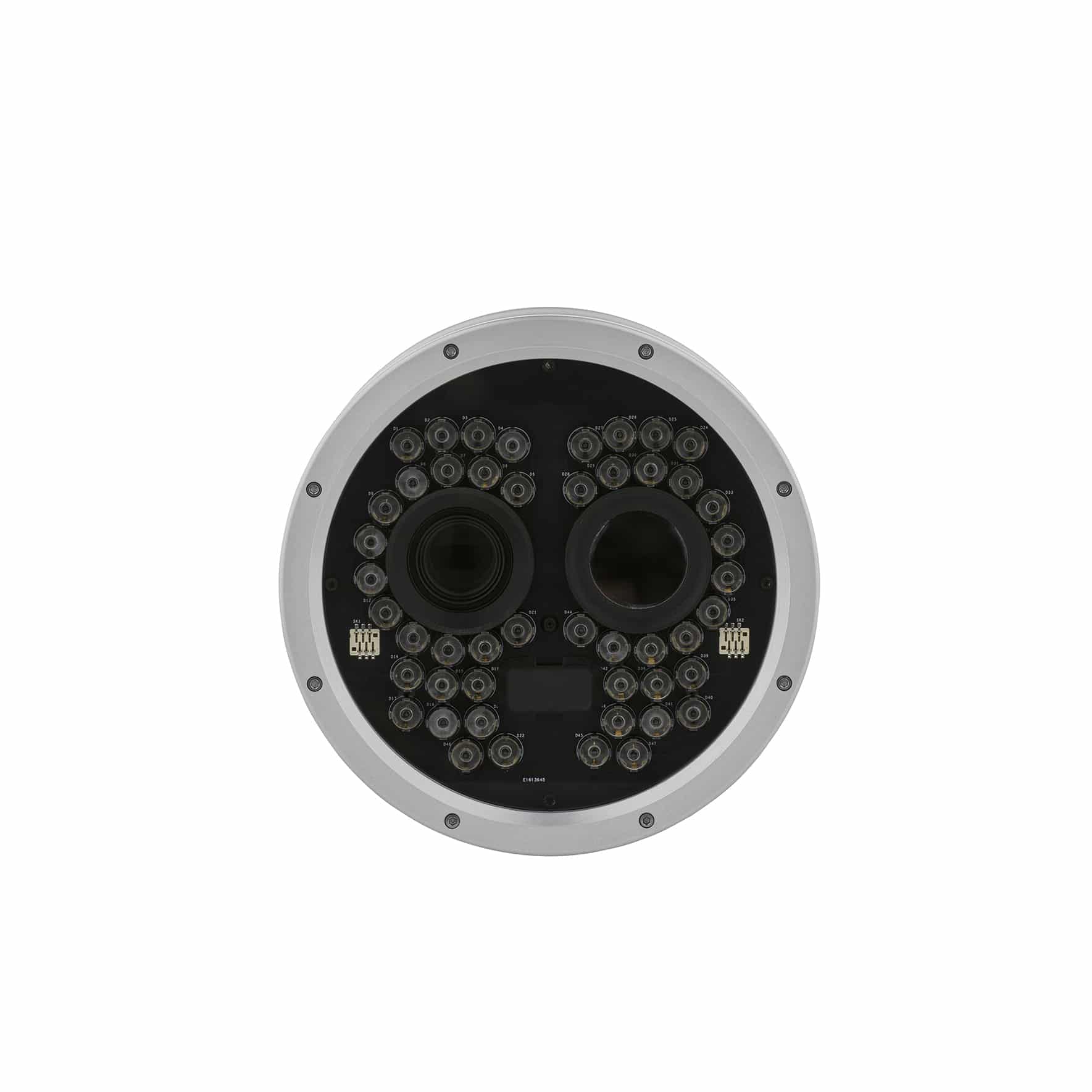

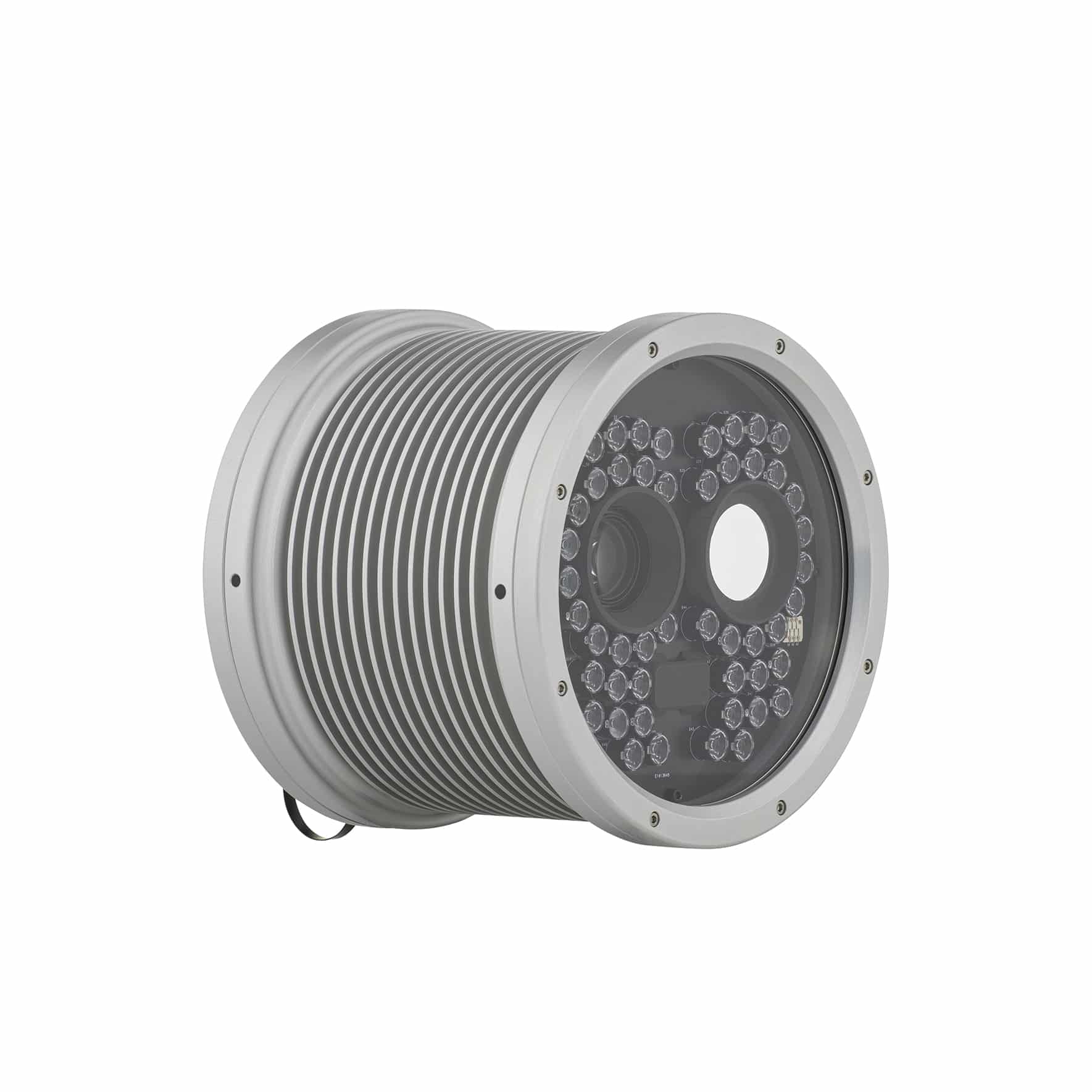

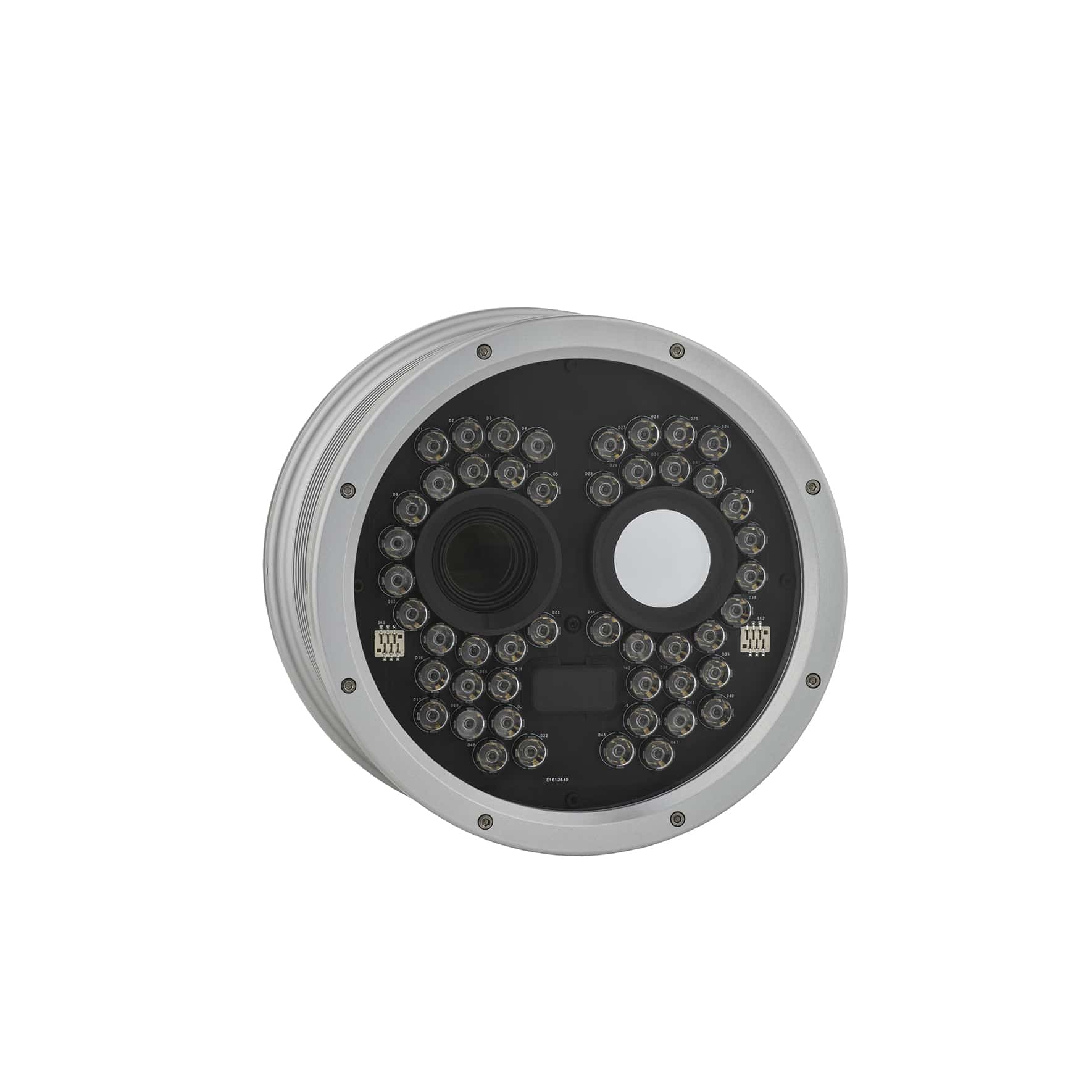

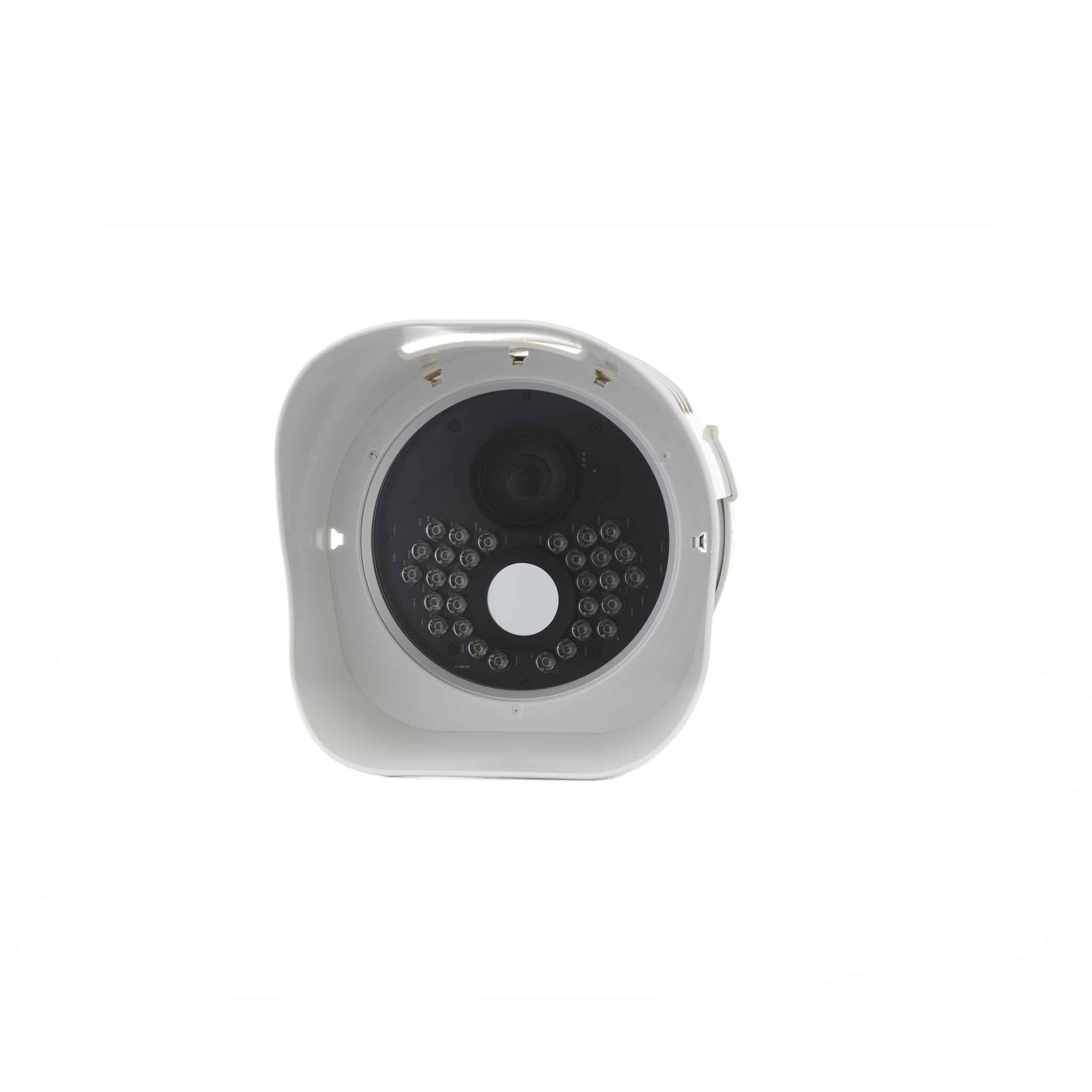

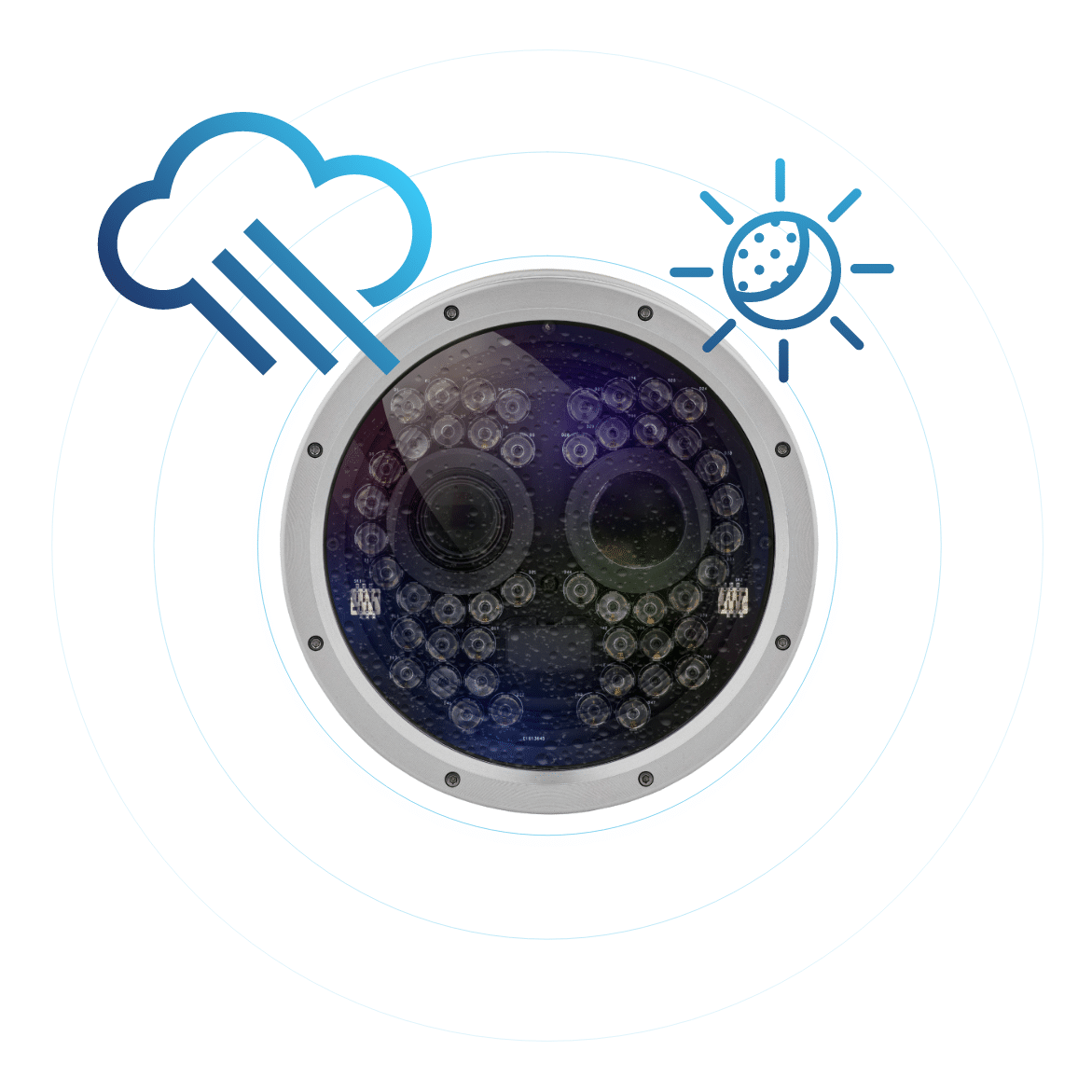

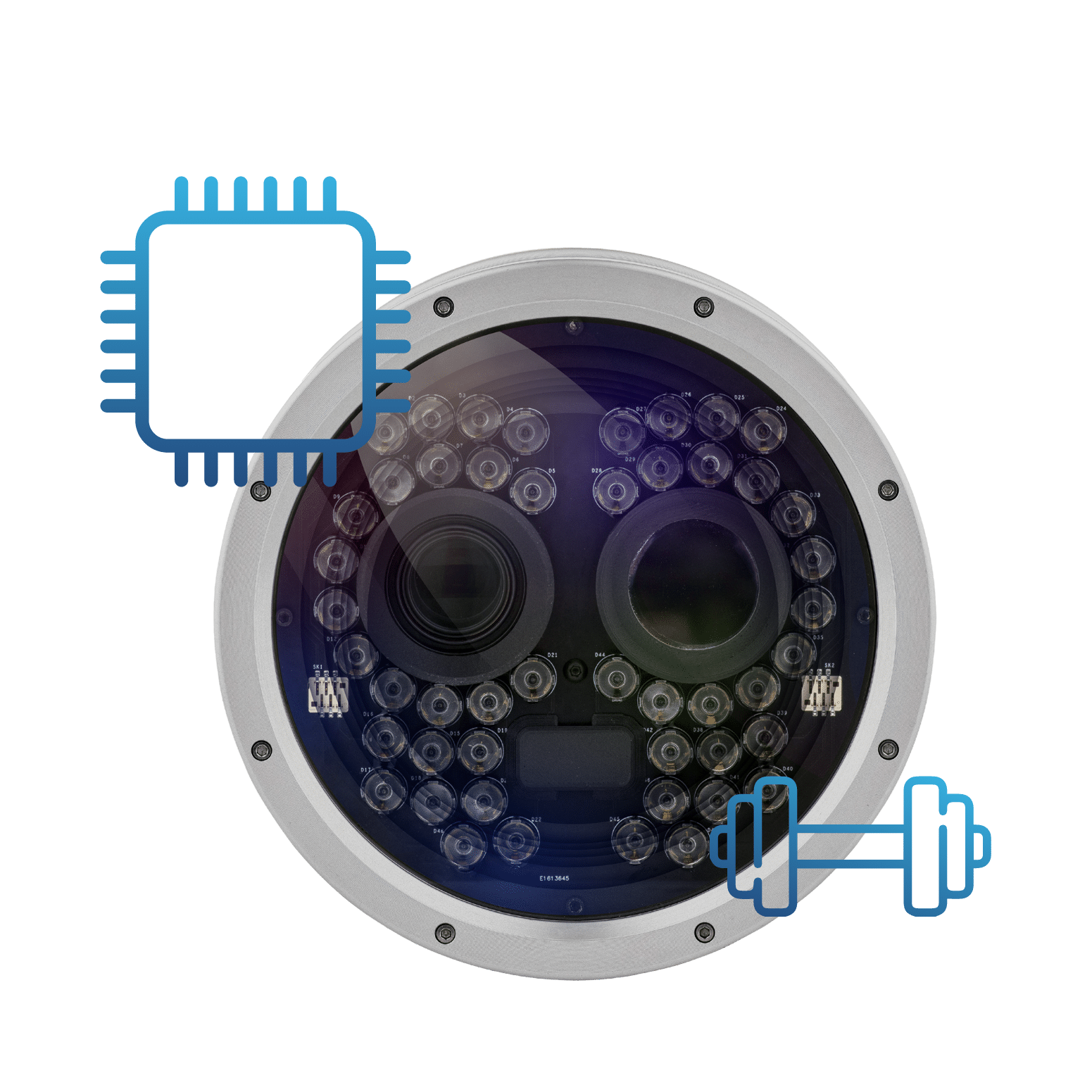

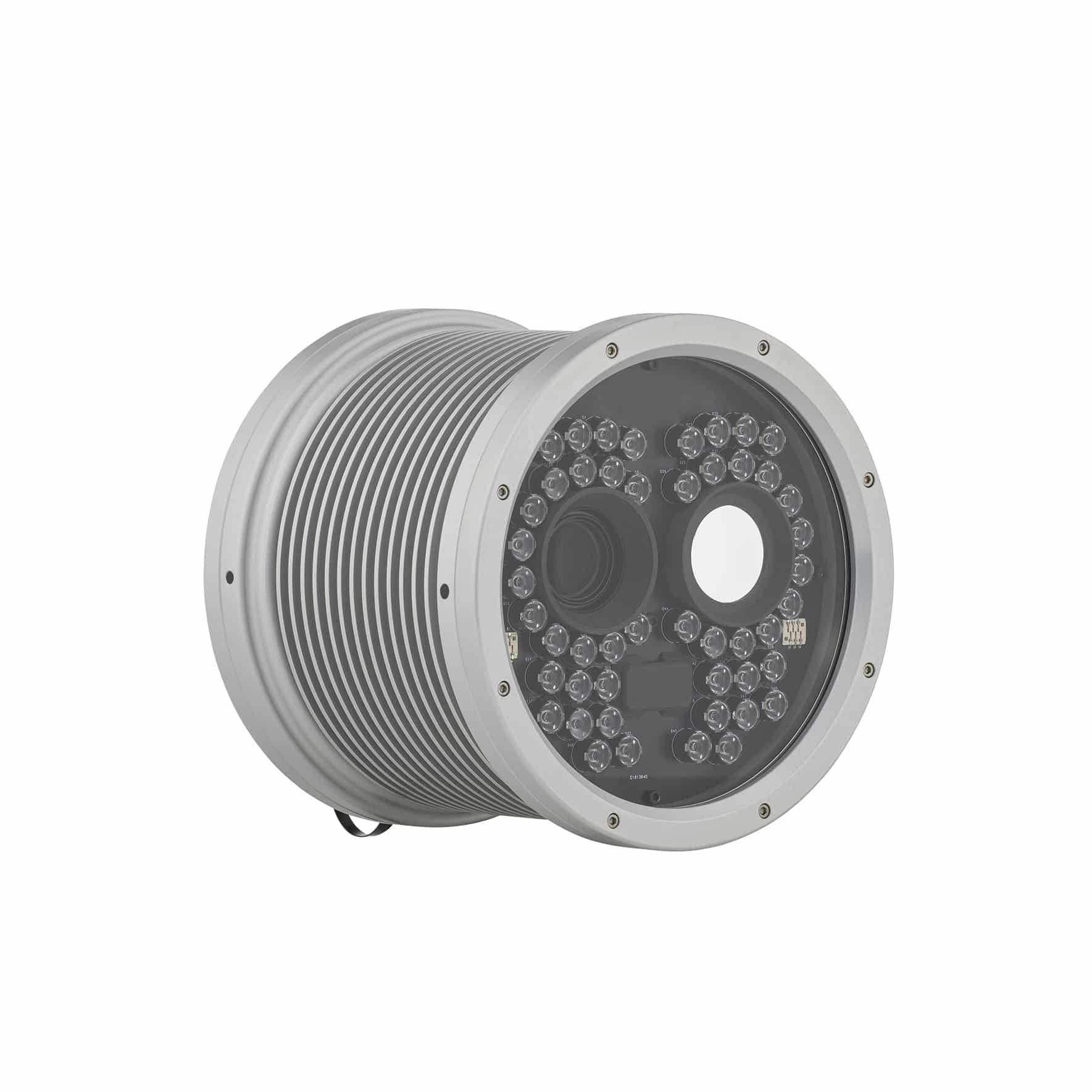

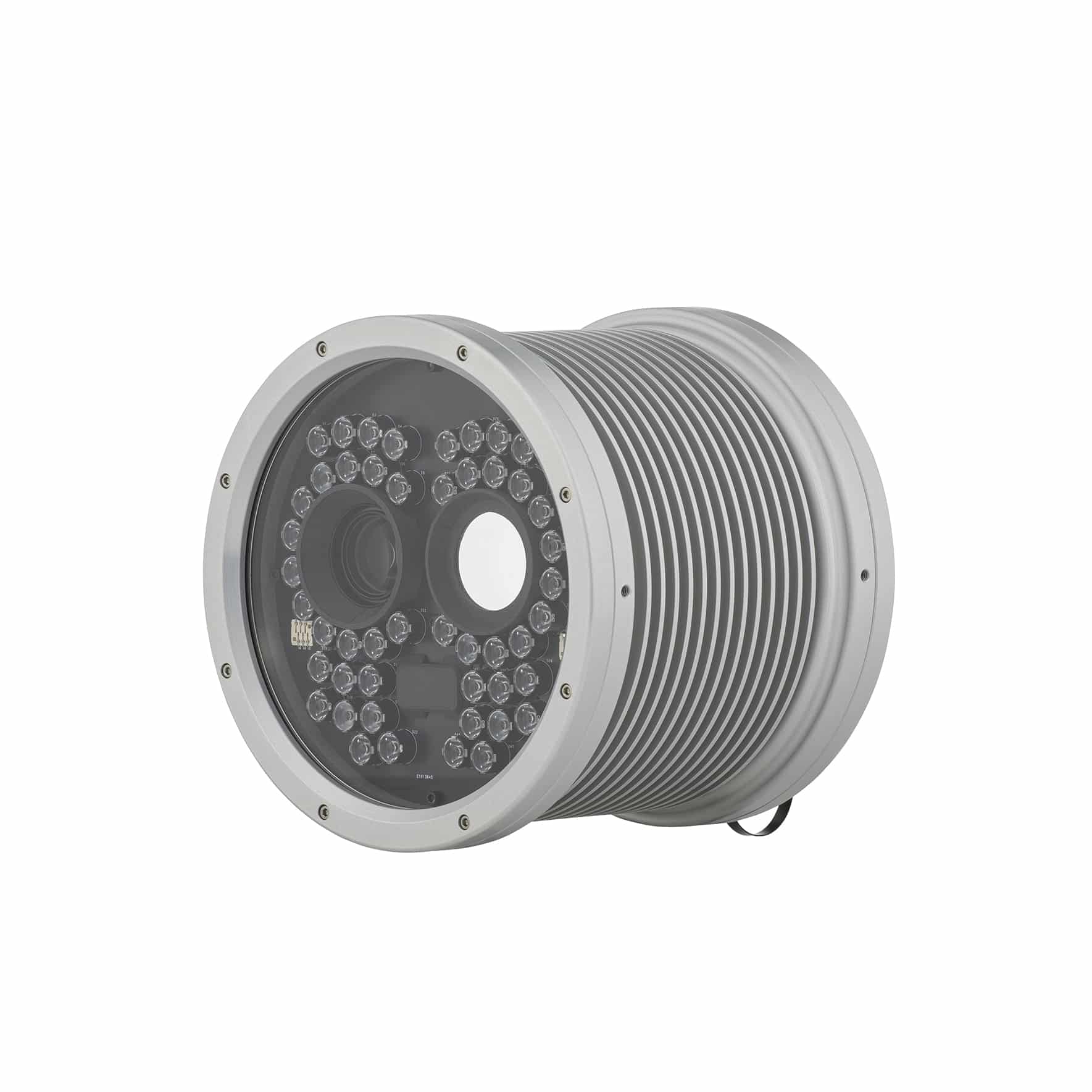

IR illumination

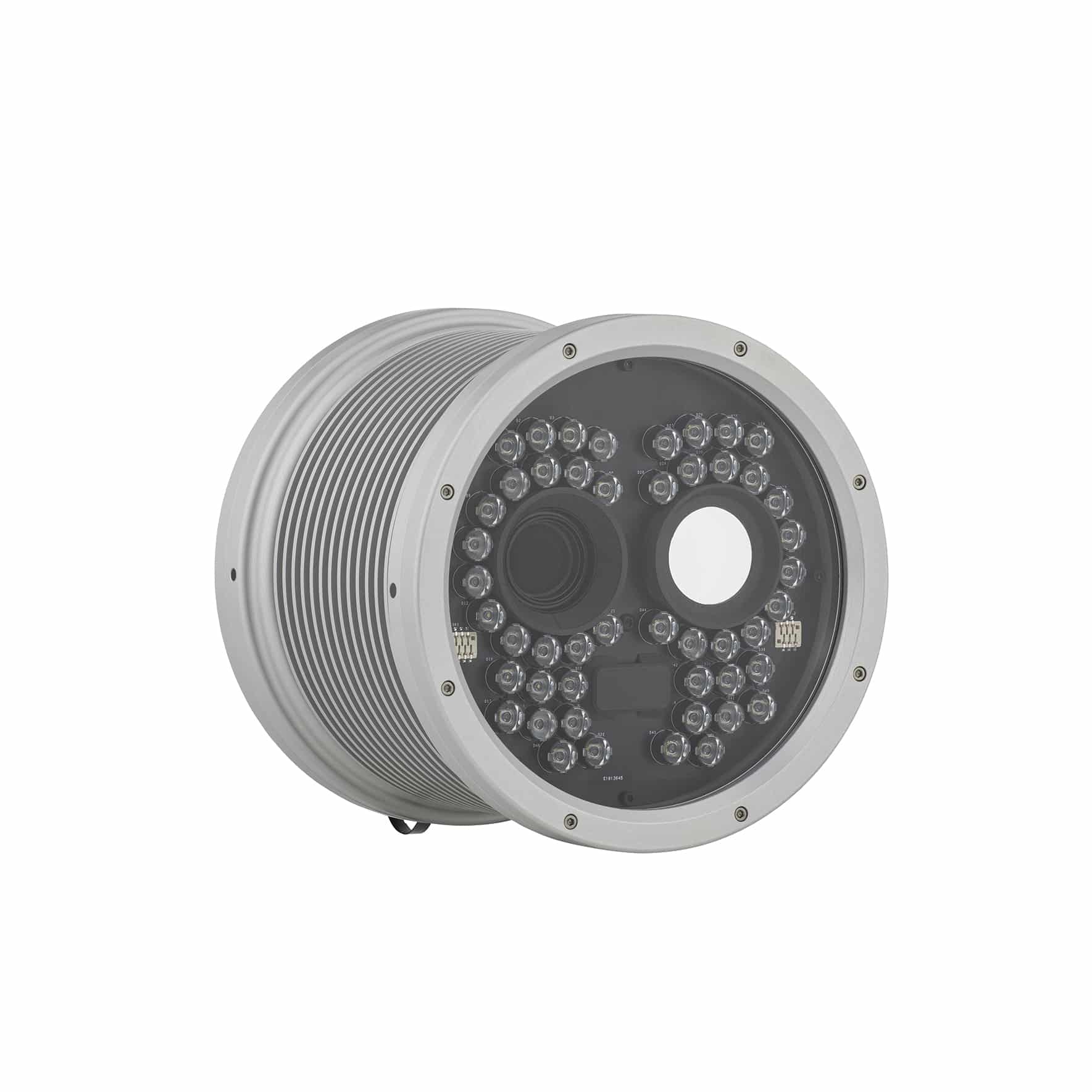

Pulsed LED array with lenses (850nm standard. White light, 740nm or 940nm optional)

Optical Filters

IR: Bandpass matched to LEDs OV: Day/Night IR Cut Filter (auto/manual)

Camera Control

Integrated web server provides full camera and illuminator setup pages and live preview from any connected browser (no plug-ins required)

ANPR Functionality

ANPR Processor

Quad core embedded processor with GPU support

ANPR Software / Presets

ANPR license and settings upload via web-based configuration pages for simple remote management

Operating System

Linux based solution pre-installed with engine and capability to accept third-party applications for local processing and use by System Integrators for full ITS, Average Speed, Low Emission Zone and other enforcement solutions.

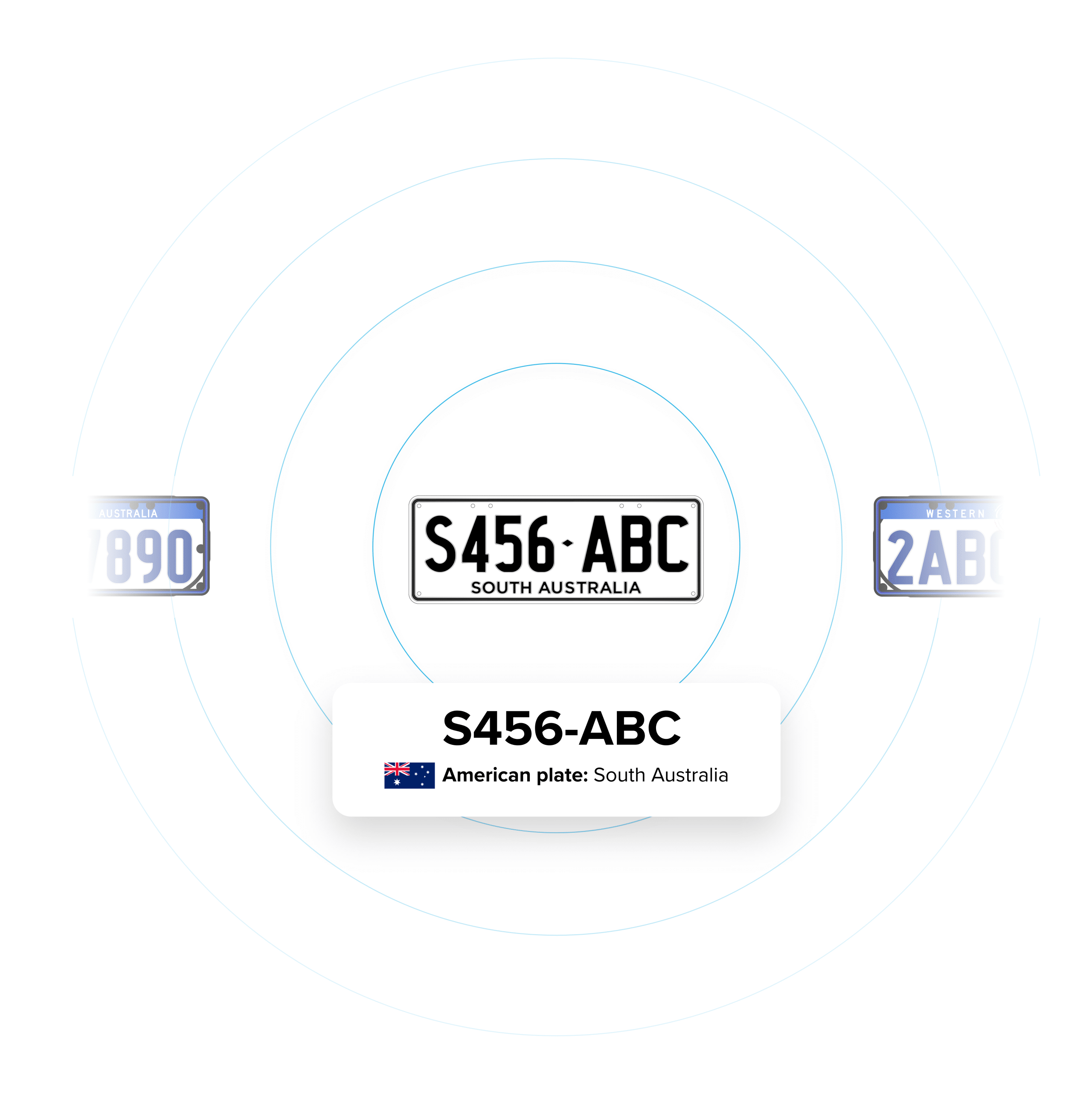

ANPR Features

Image cropping options for Overview image, advanced de-skew and yaw correction, character spacing validation, country of origin matching and direction of travel reporting

Vehicle Speed

Up to 250Km/h = 155mph (Figures based on gantry mount reading front European plates)

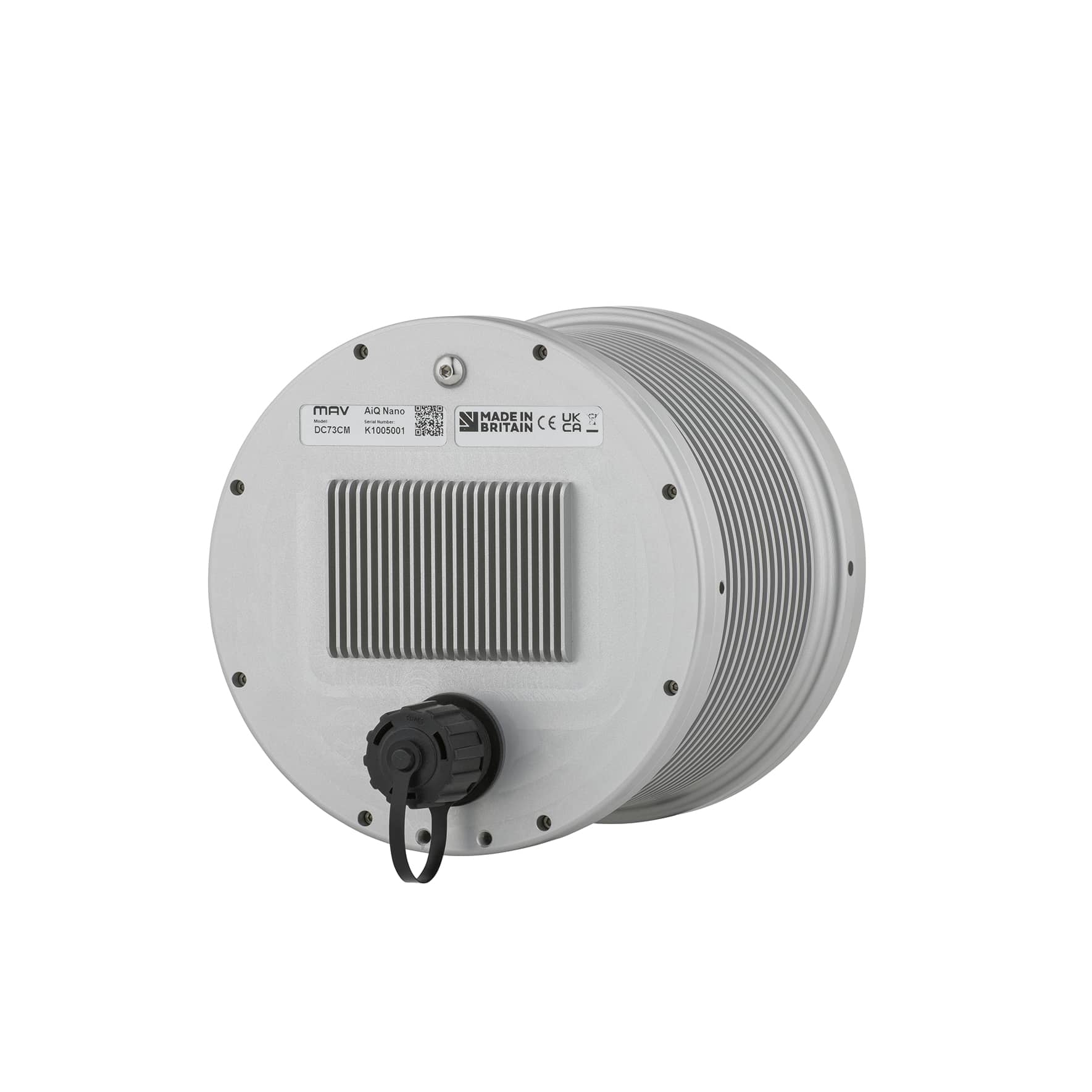

Physical Specifications

Operating Voltage

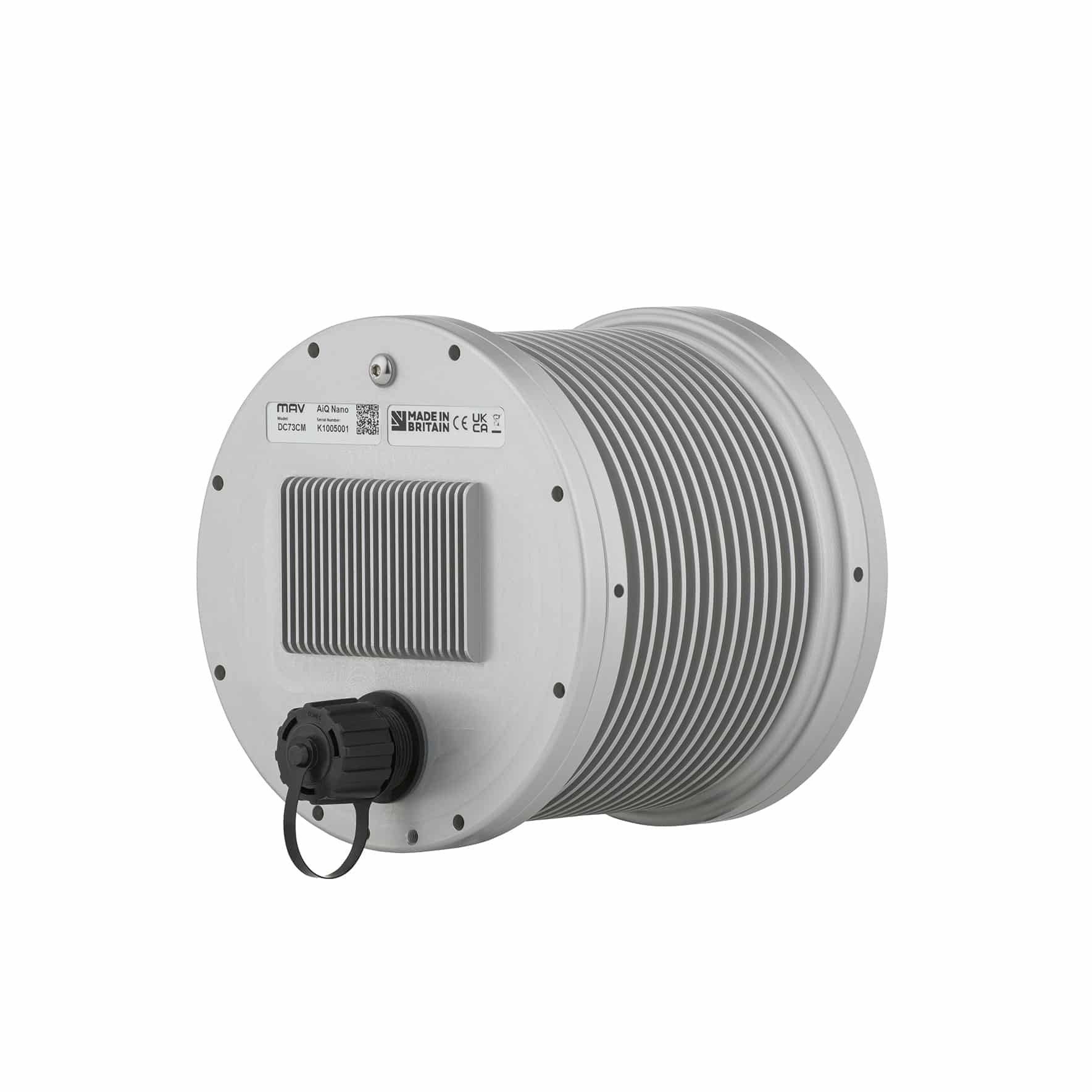

PoE++ (802.3bt type 2) or 10-15VDC suitable for battery power

Operating Voltage

10/100 Base-T physical

Power Consumption

Nominally 40W

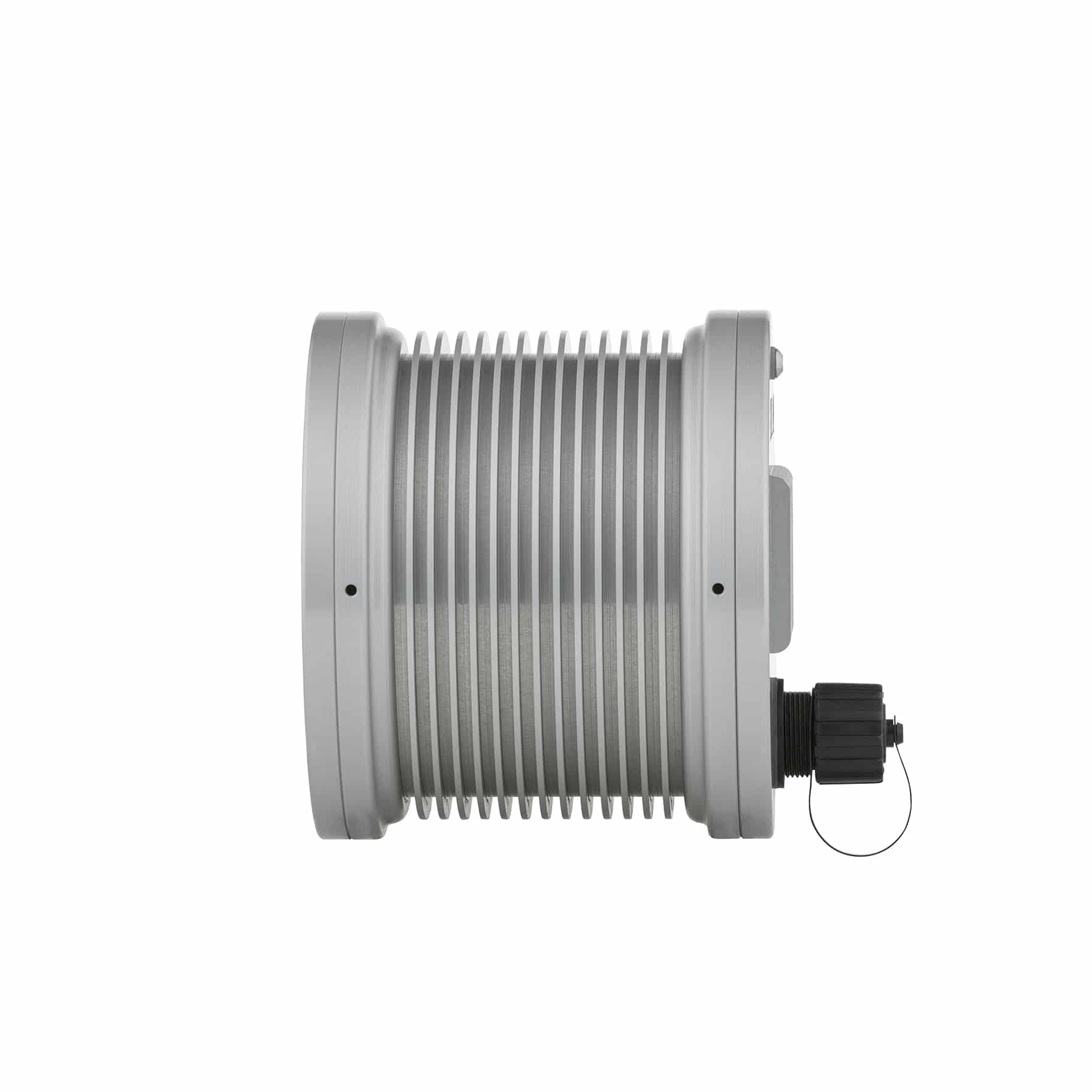

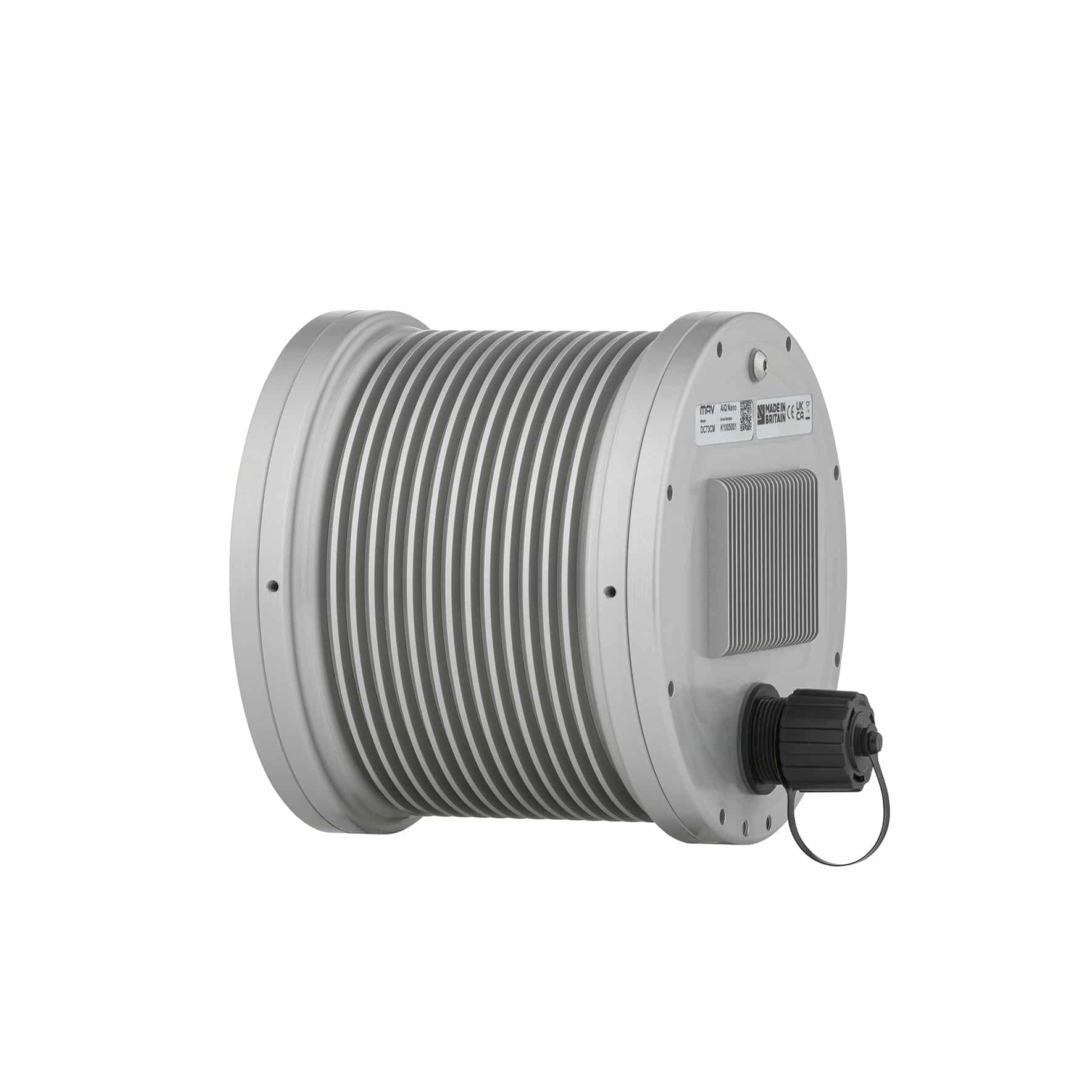

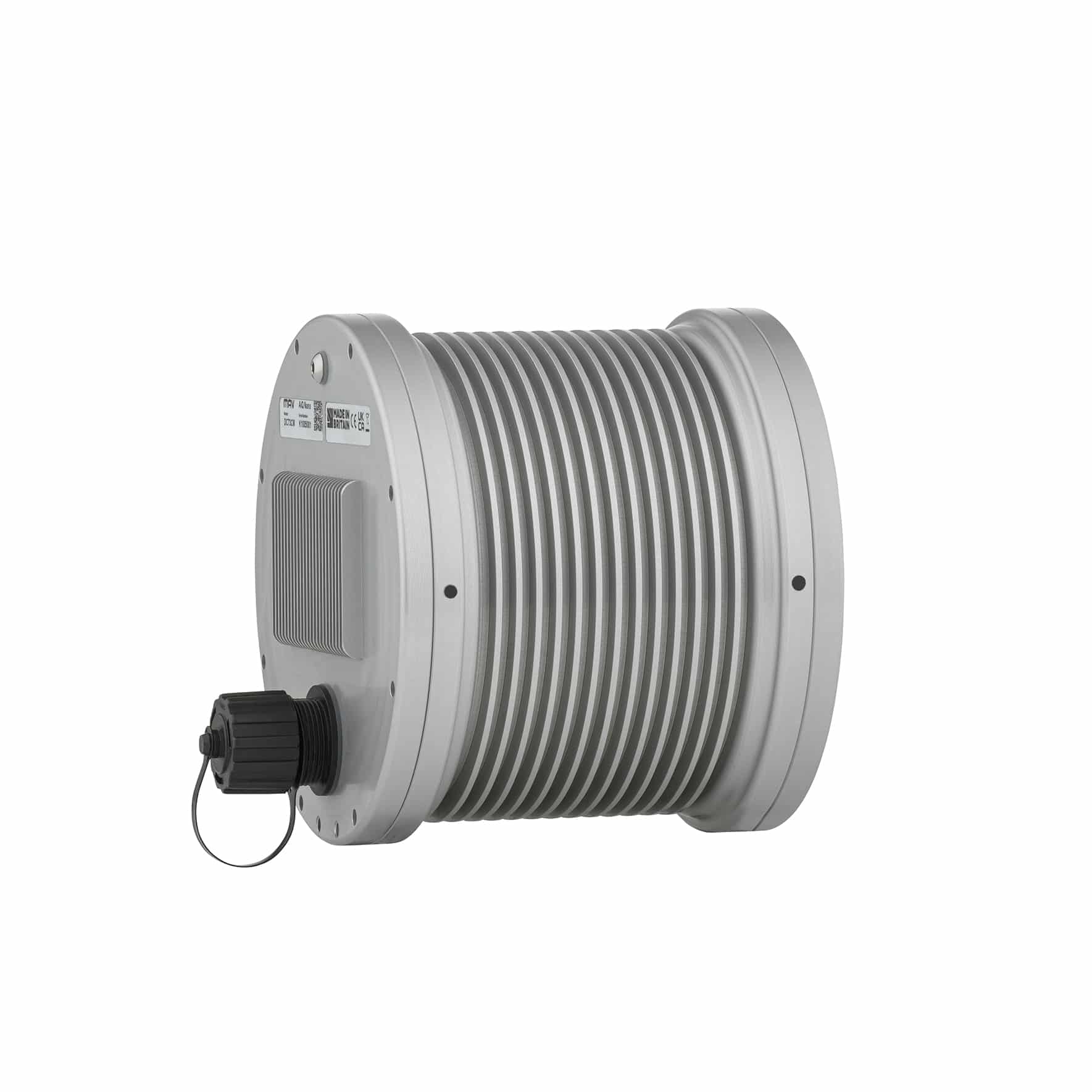

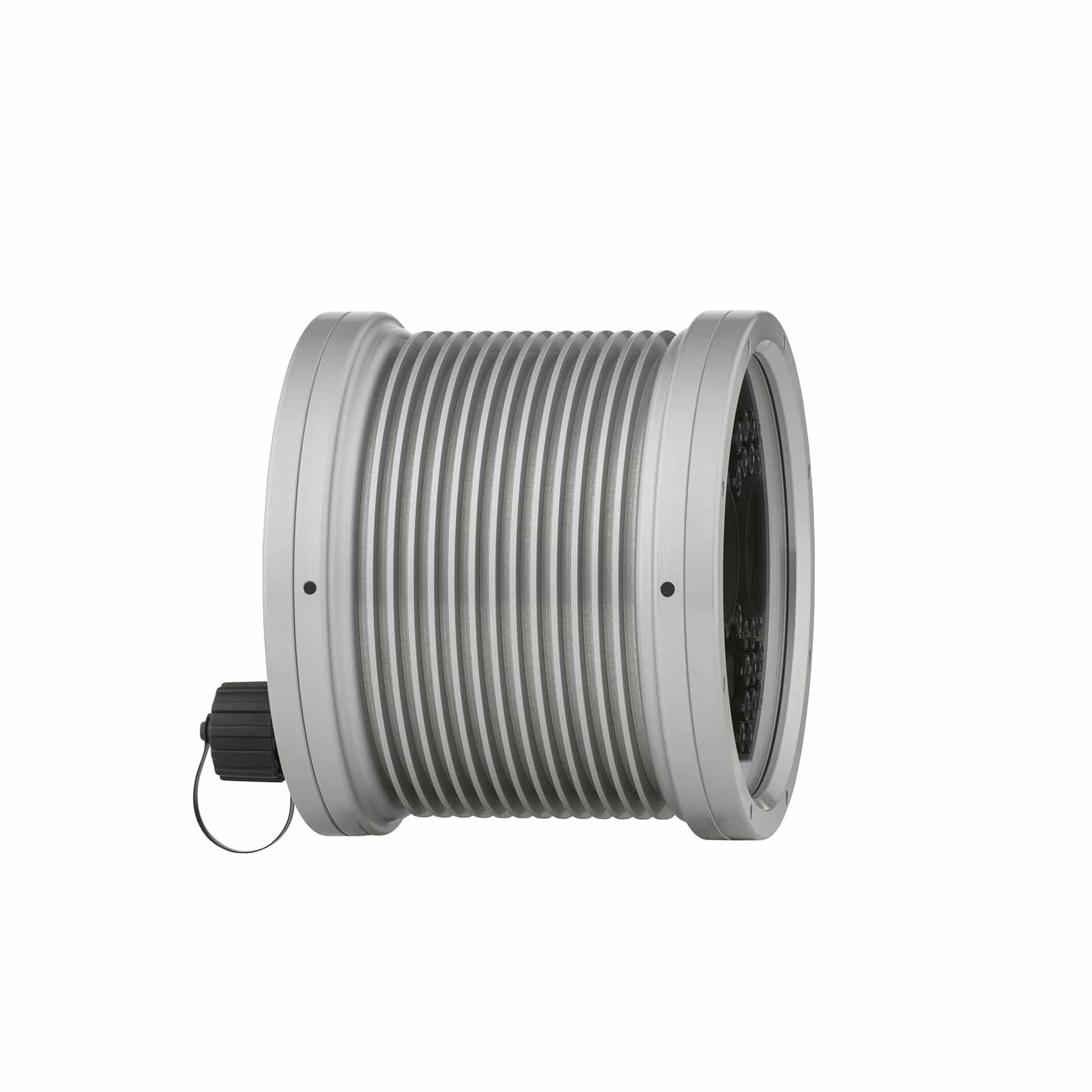

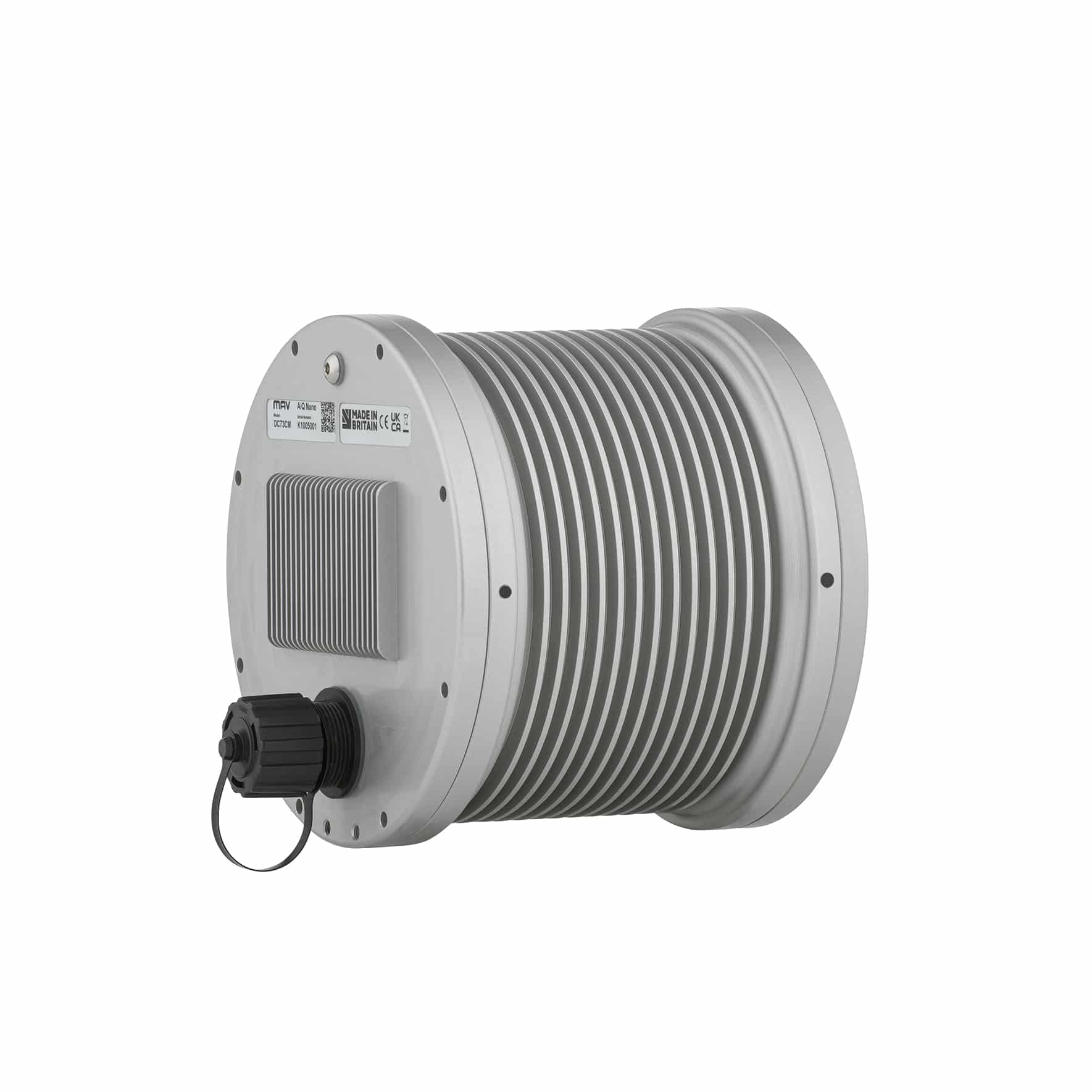

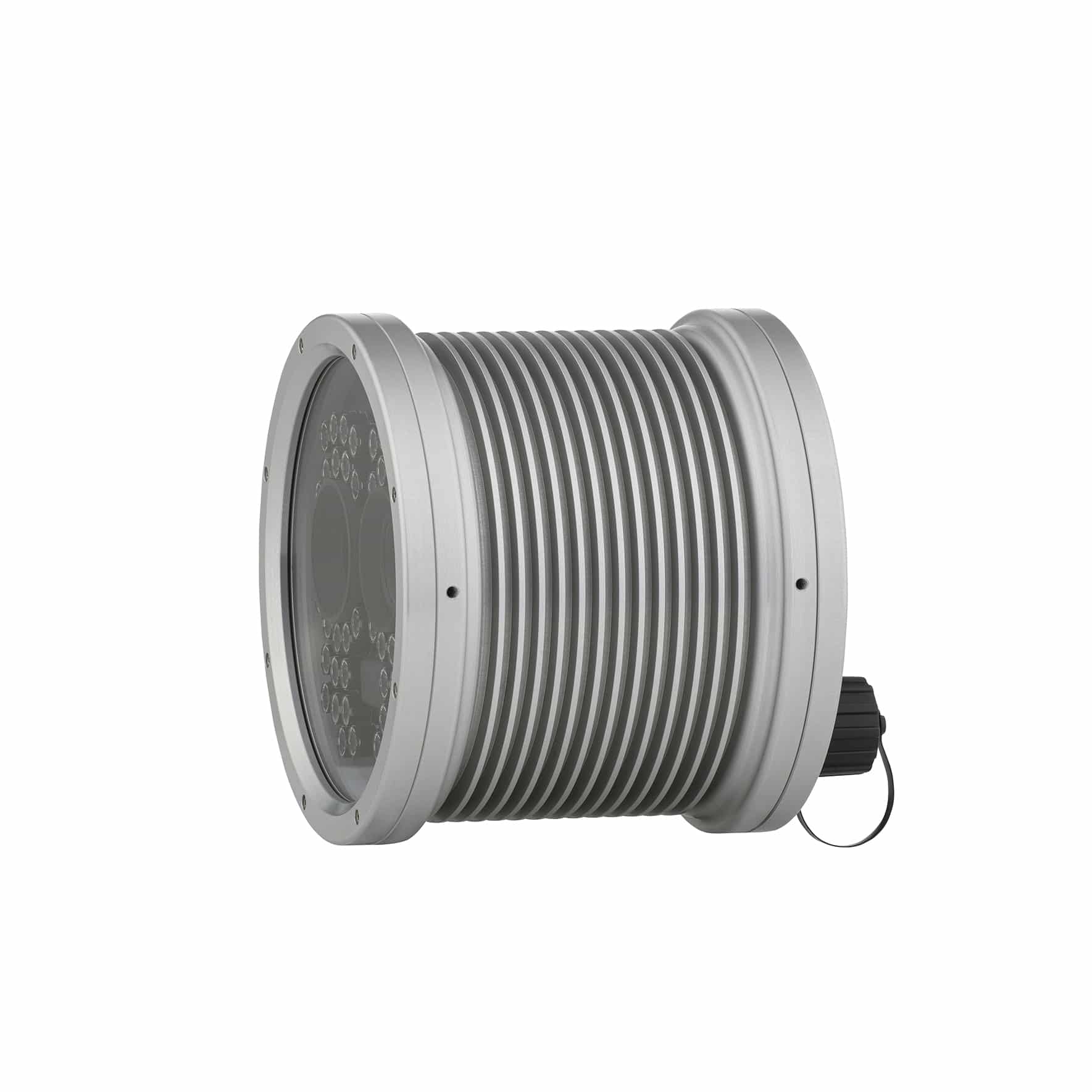

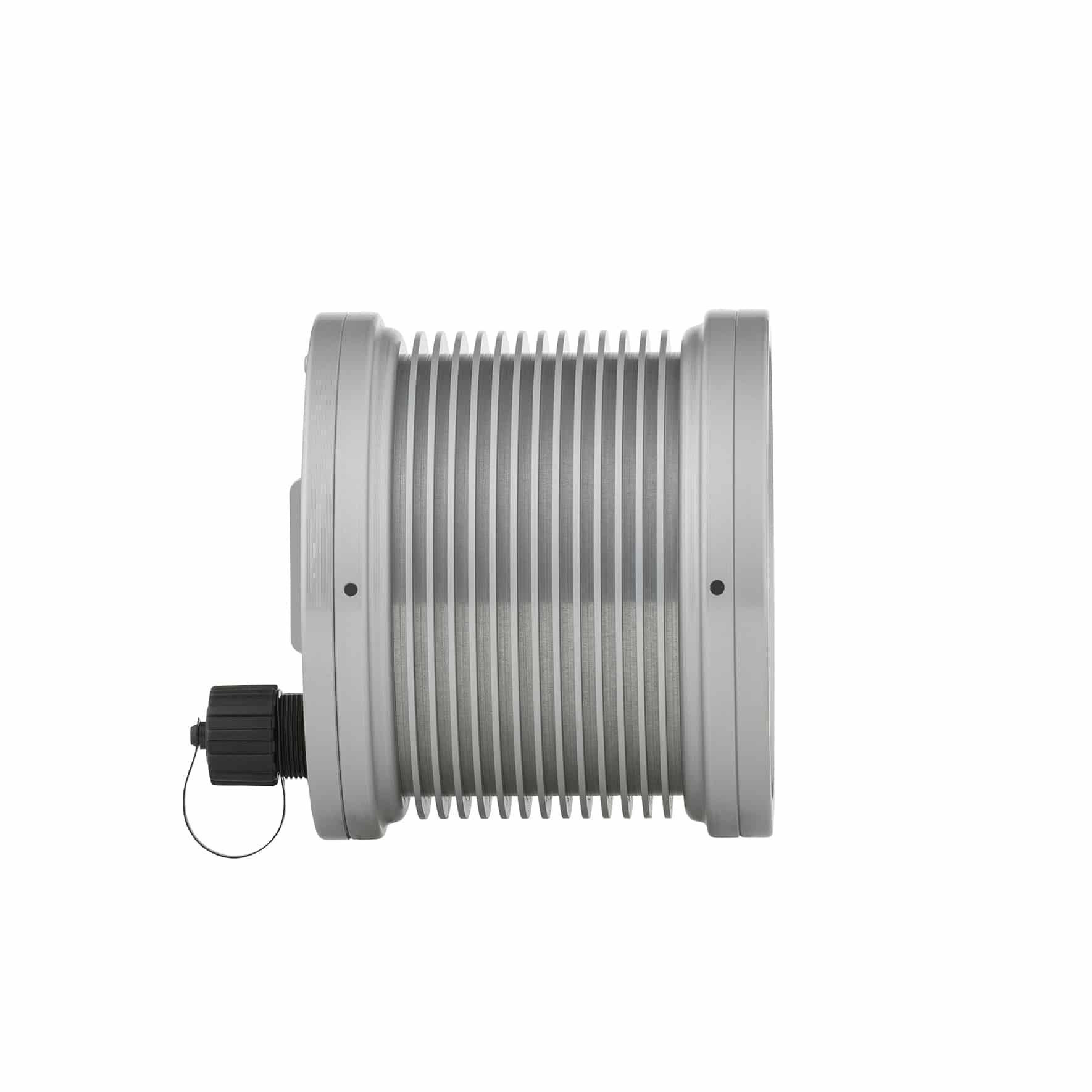

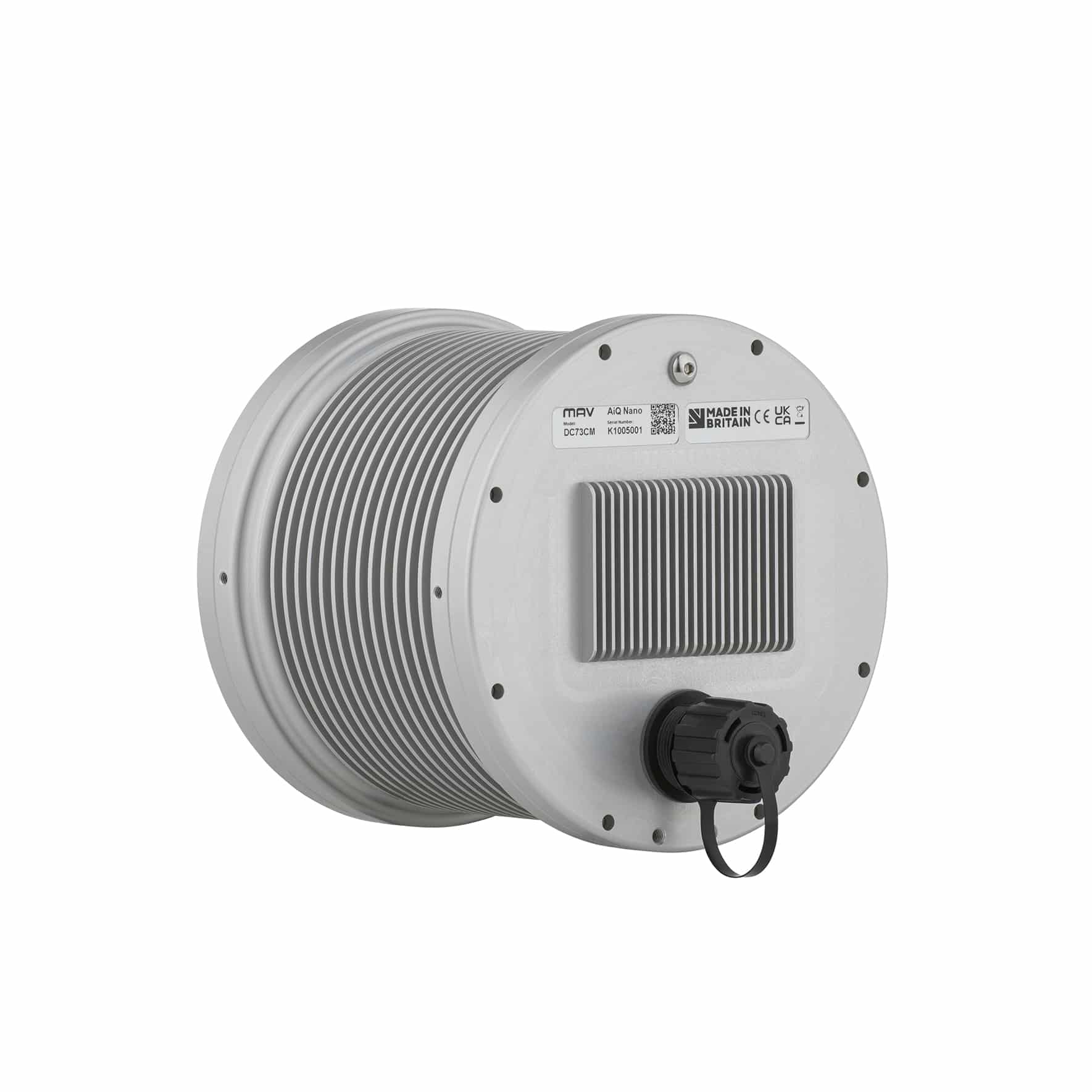

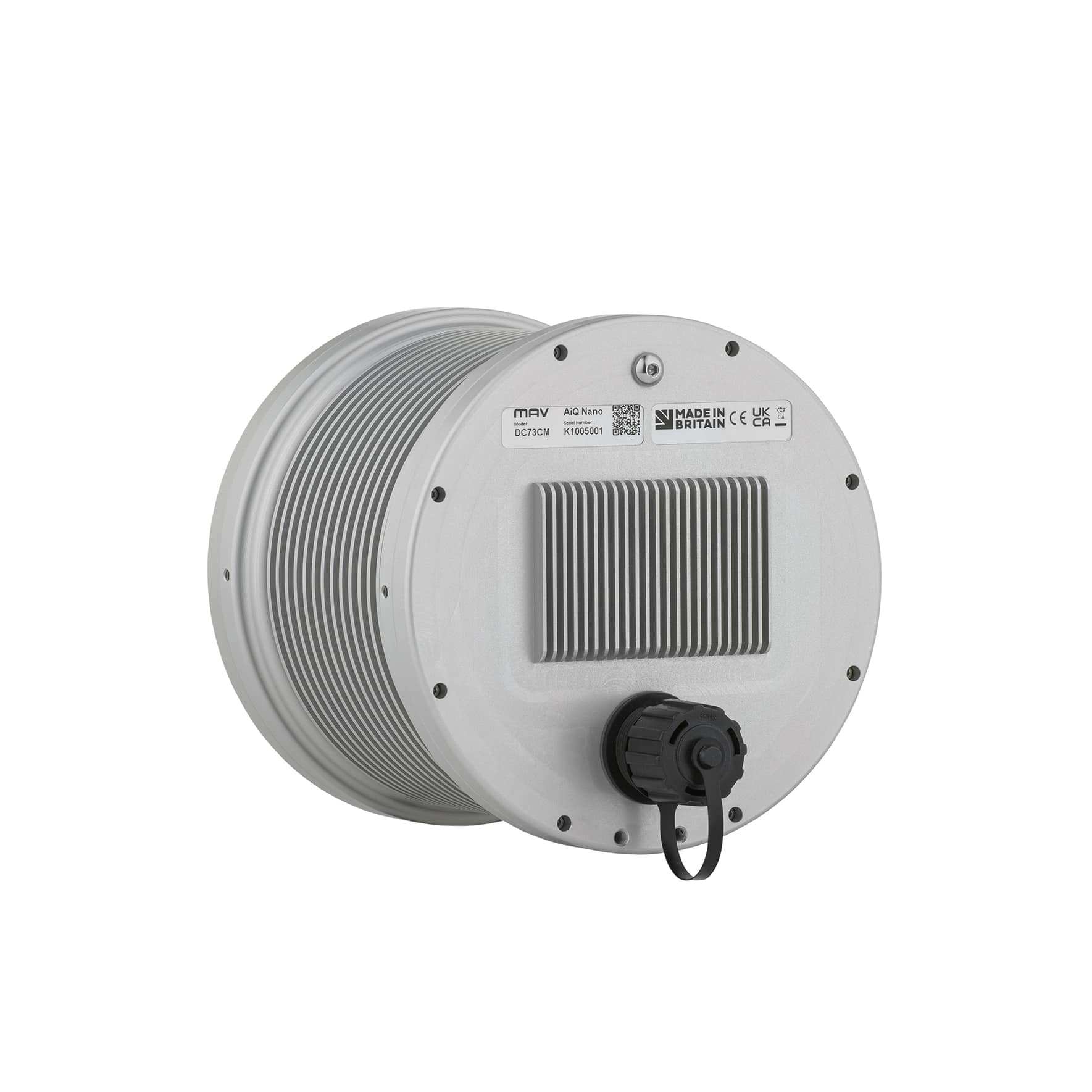

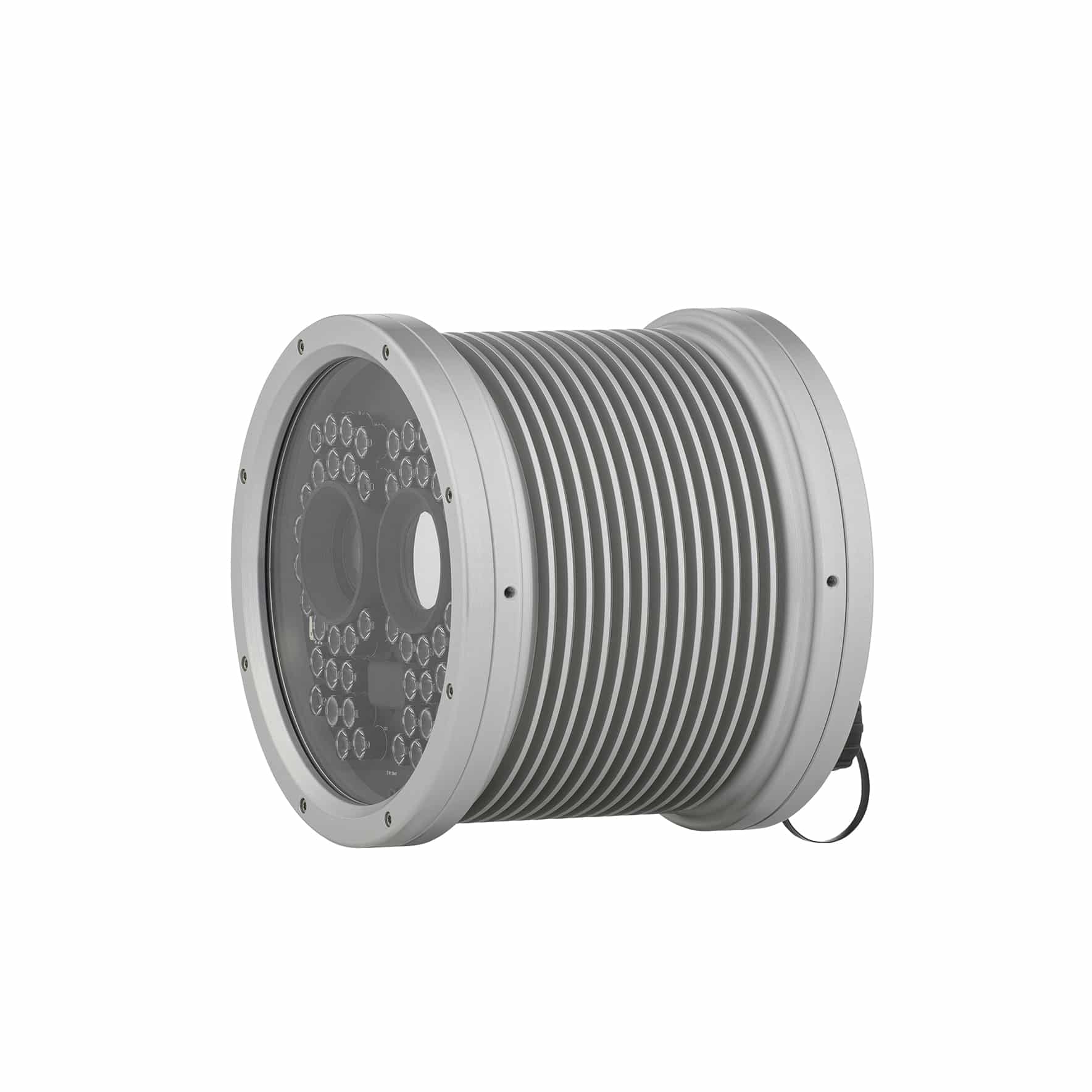

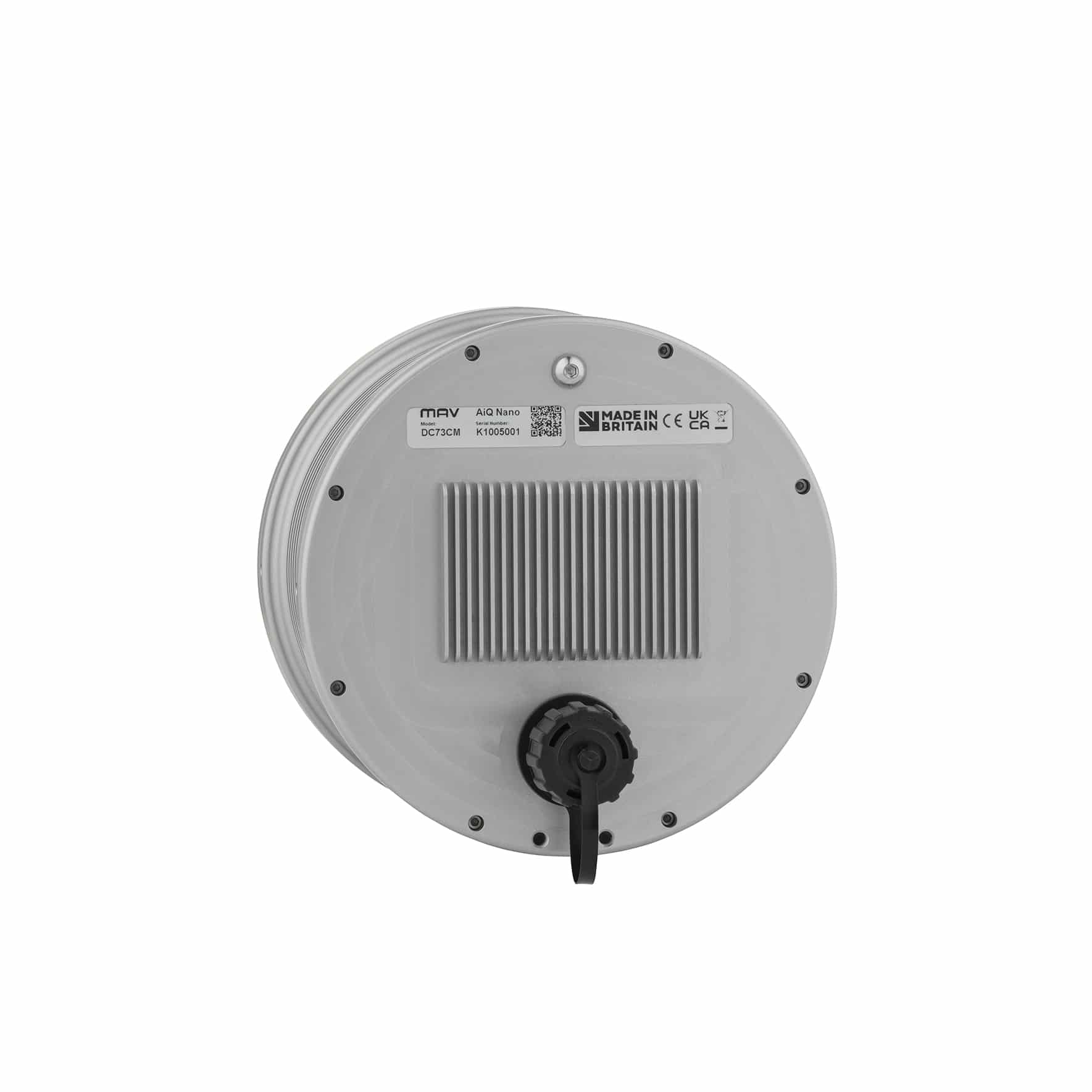

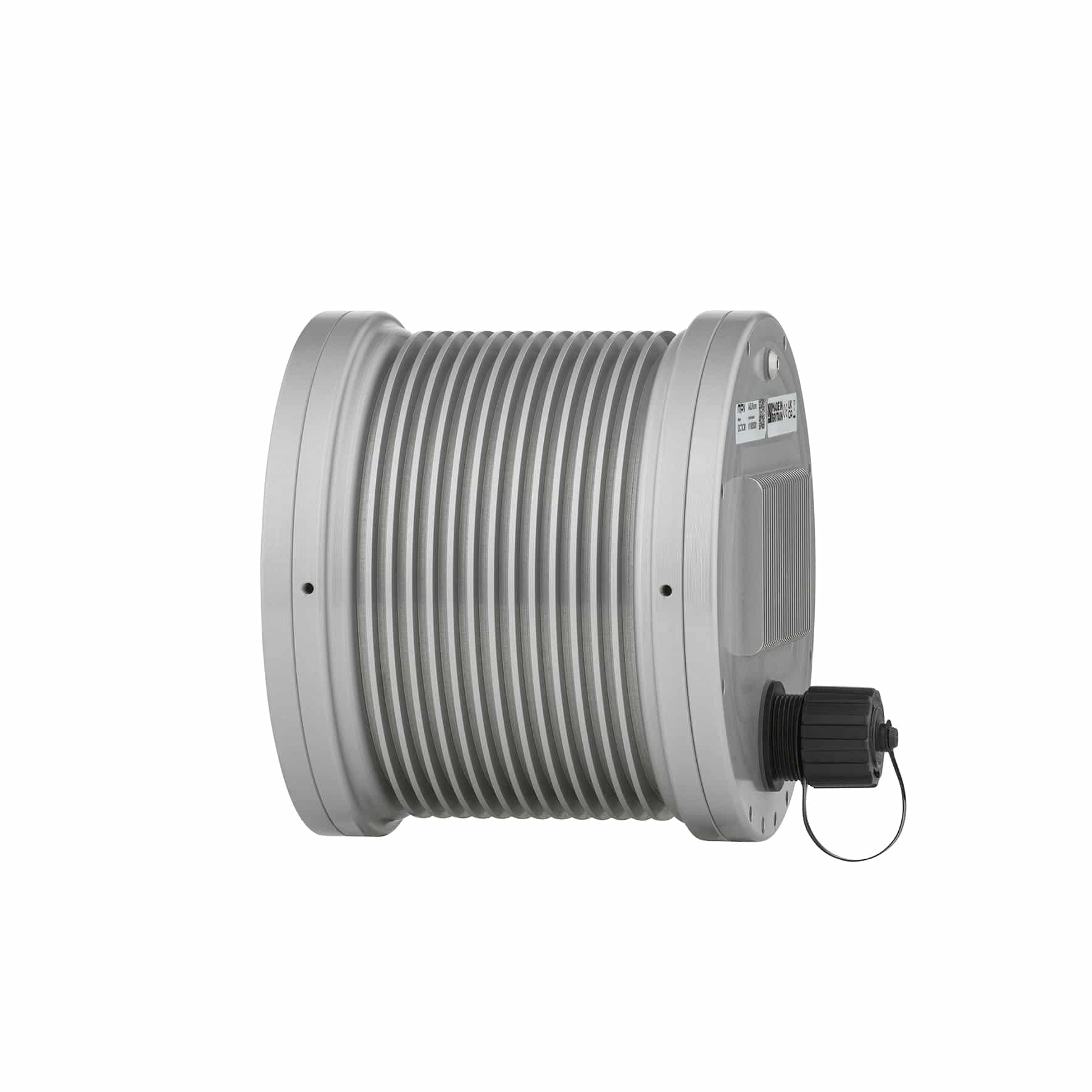

Dimensions

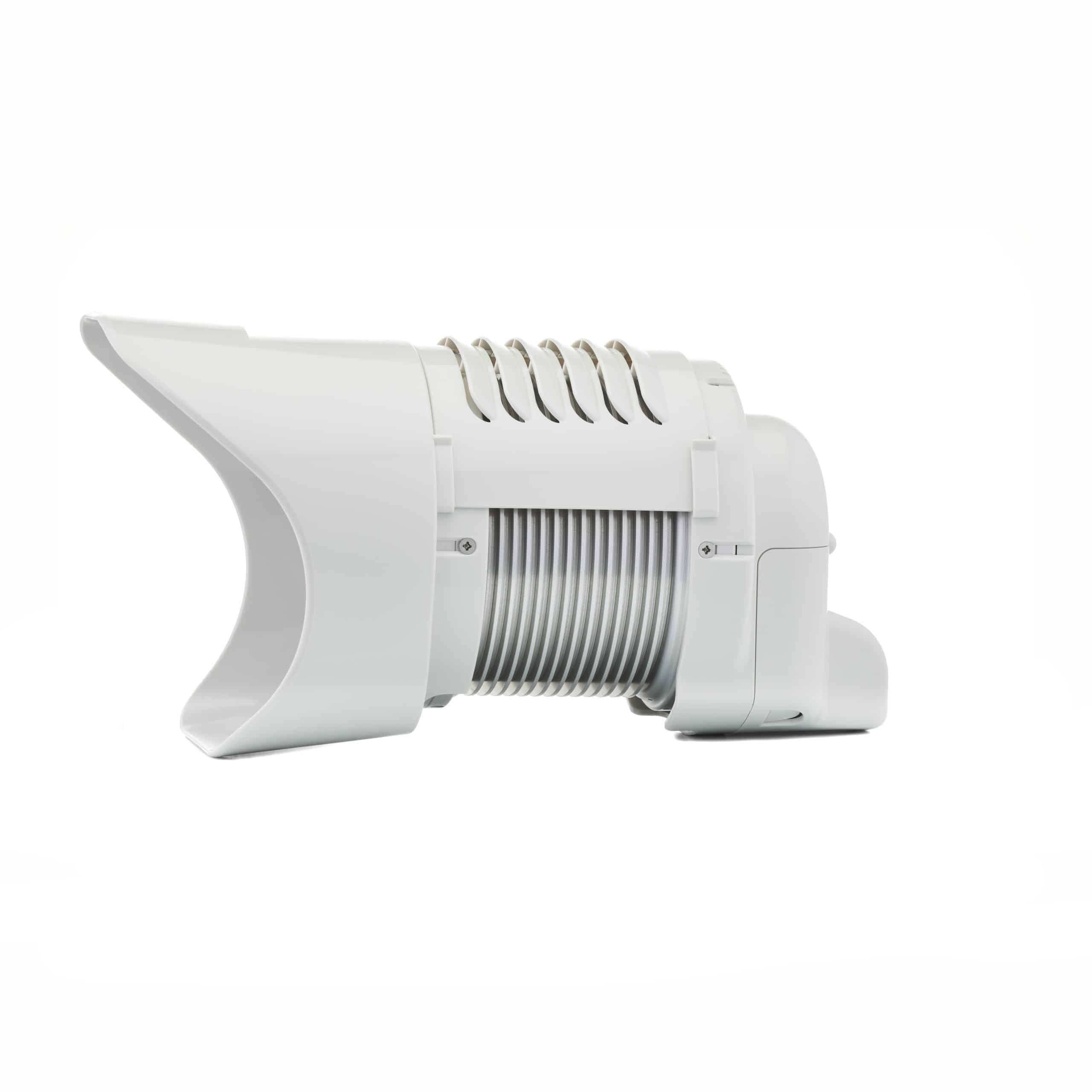

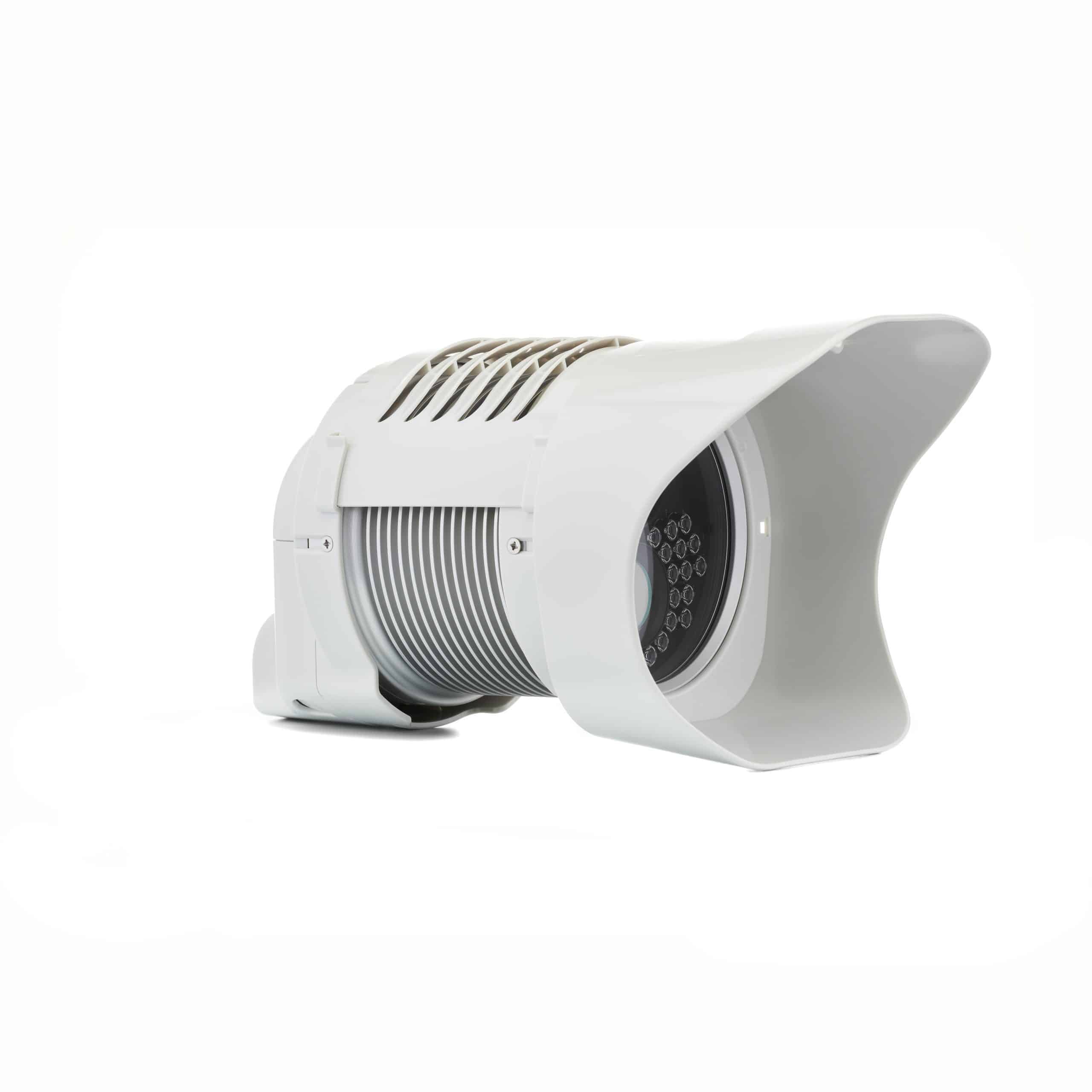

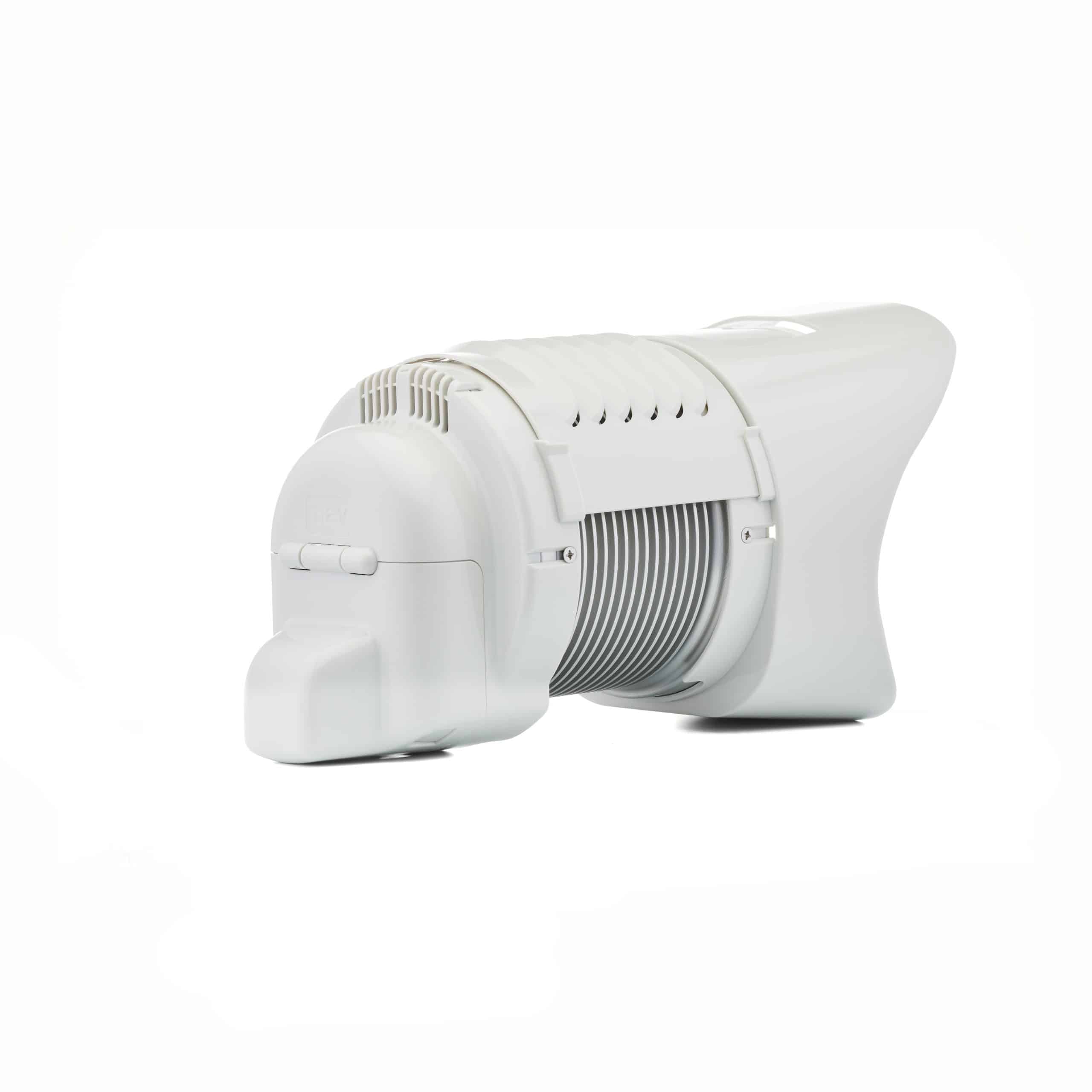

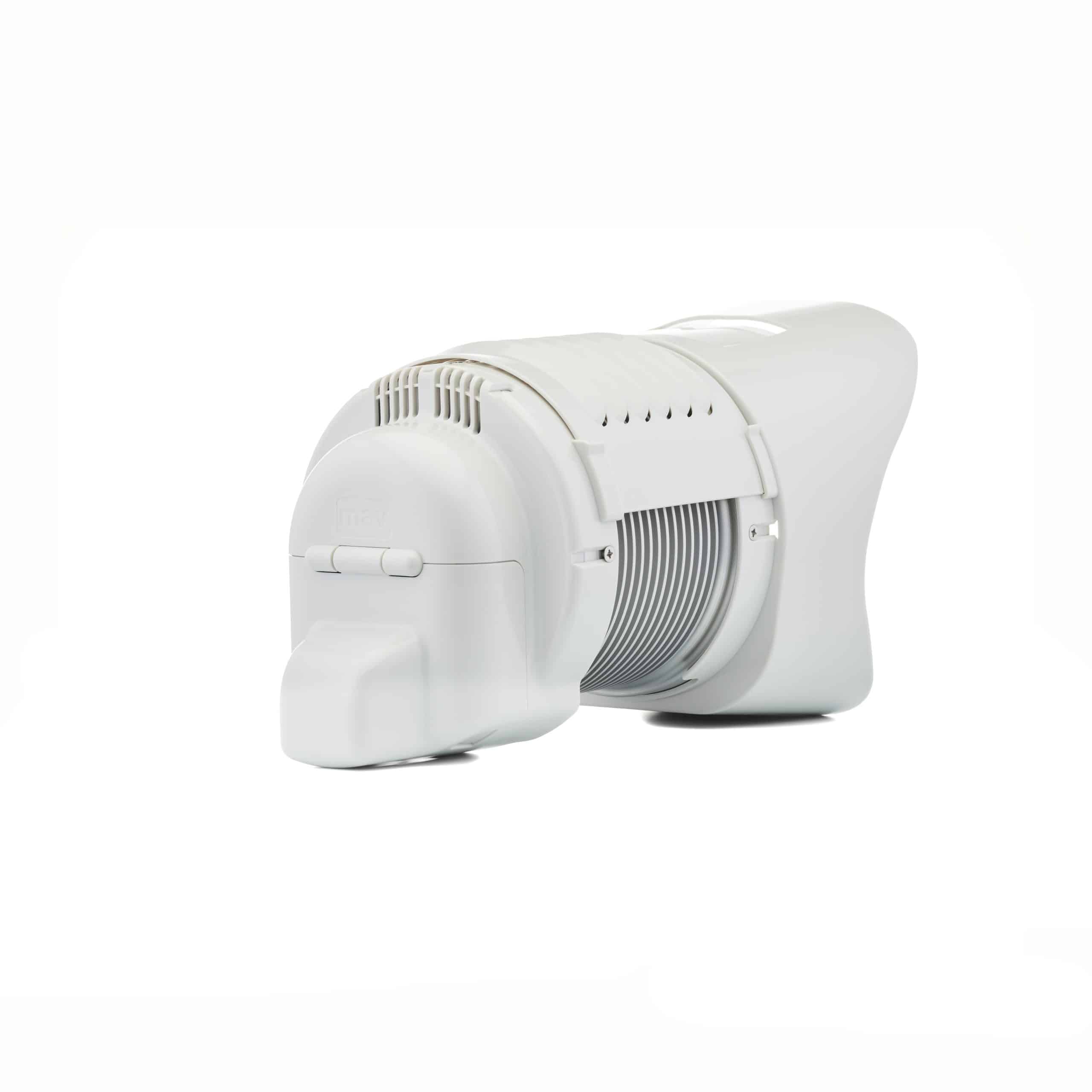

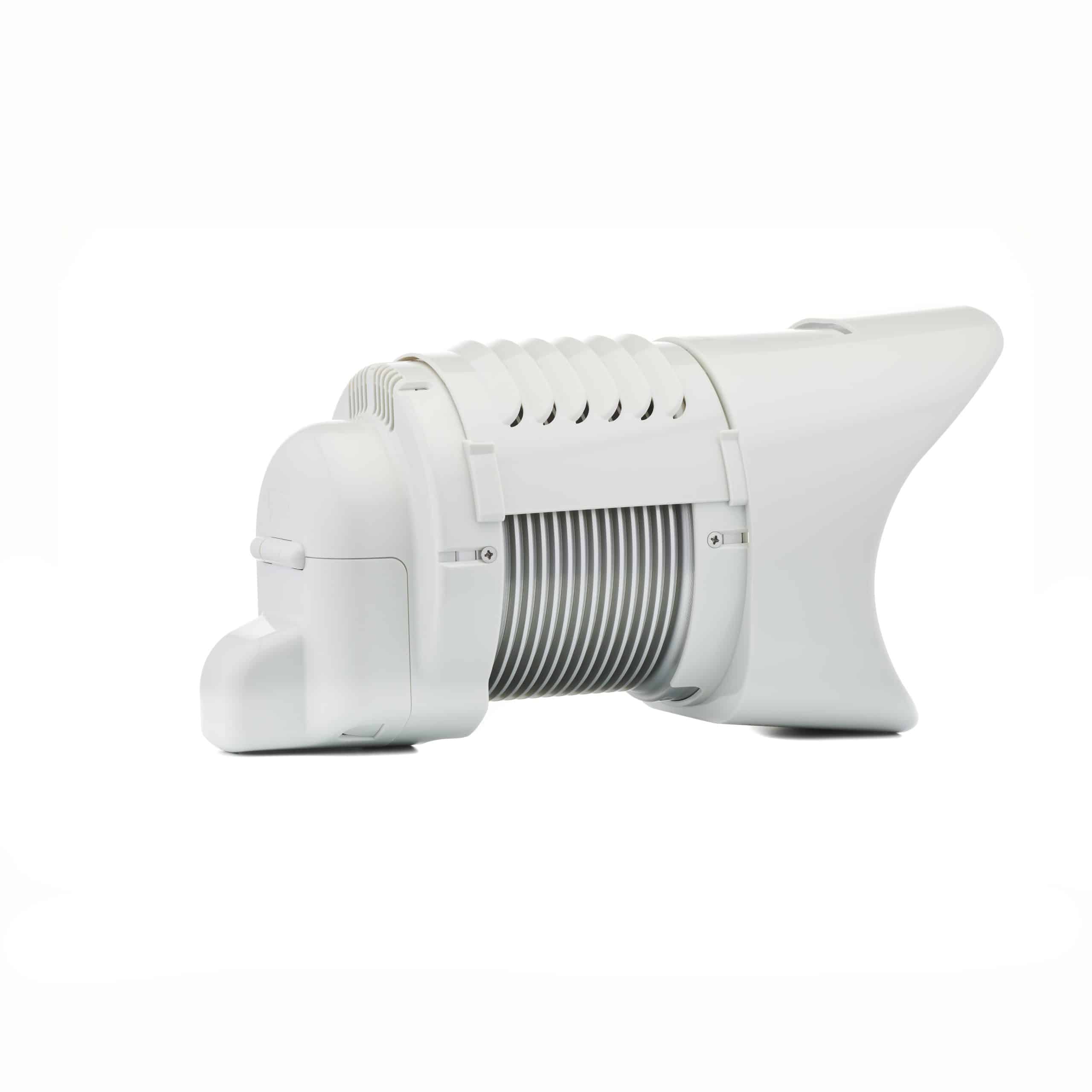

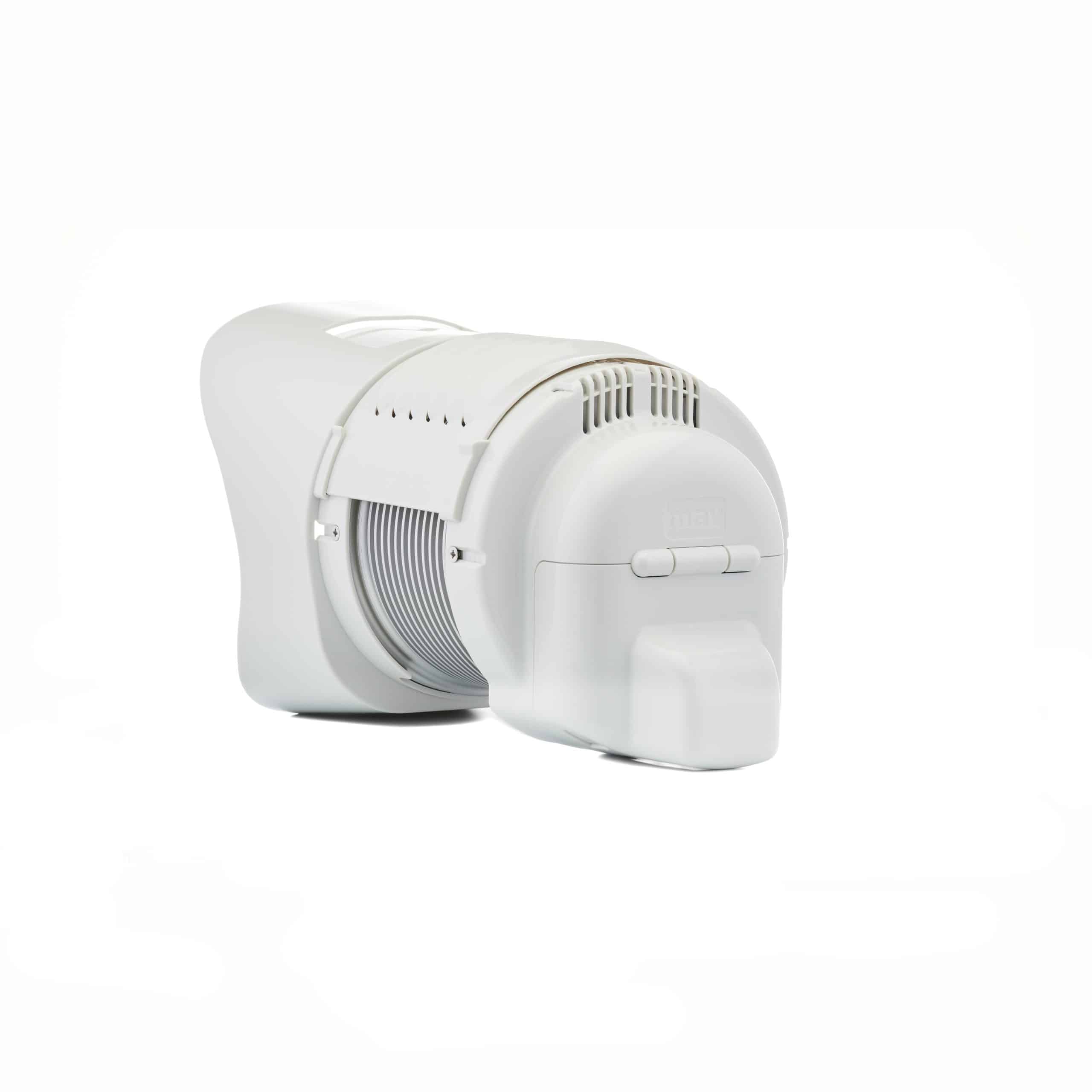

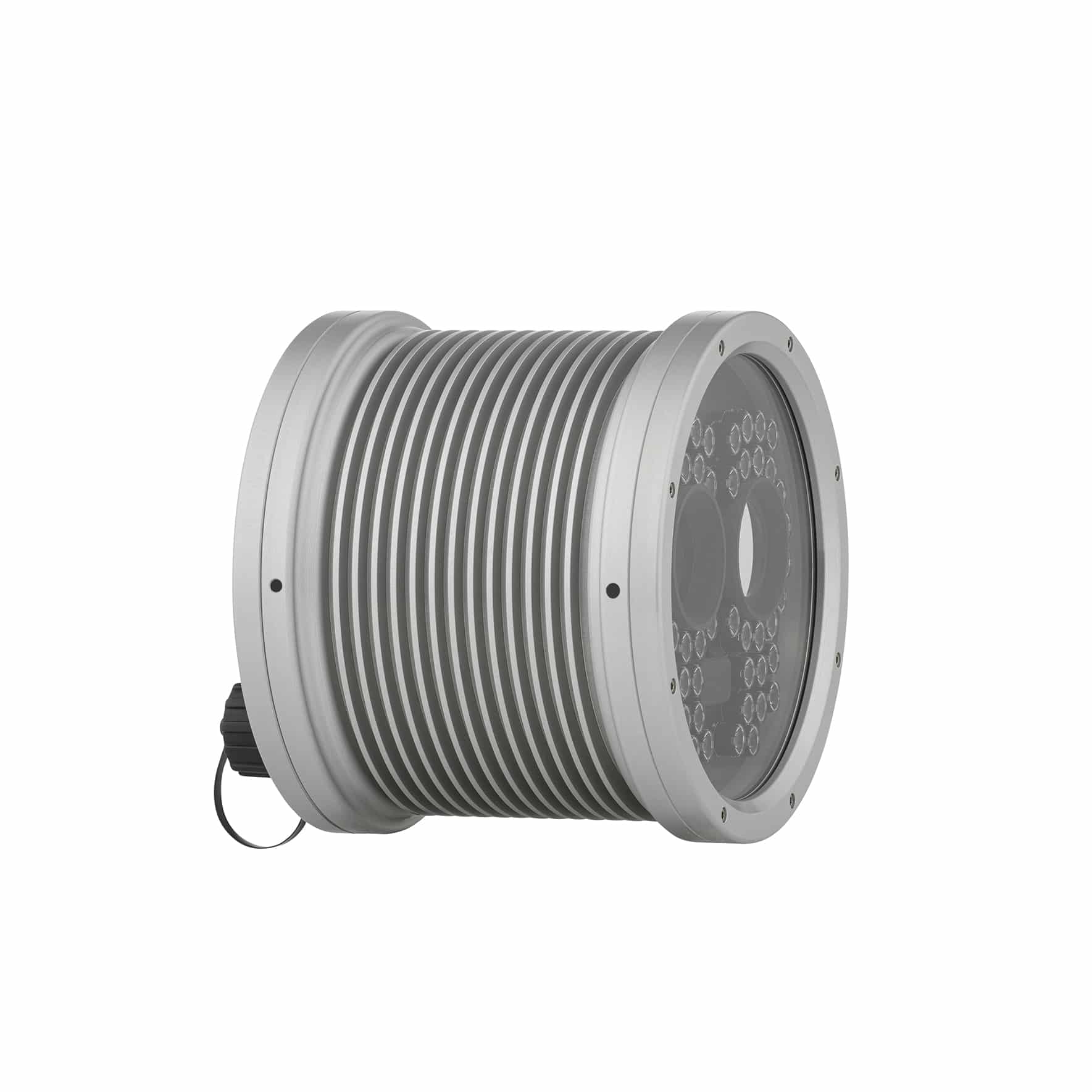

155 x 155 x 145mm (cylindrical) excluding connectors, mount and sunshield

Weight
